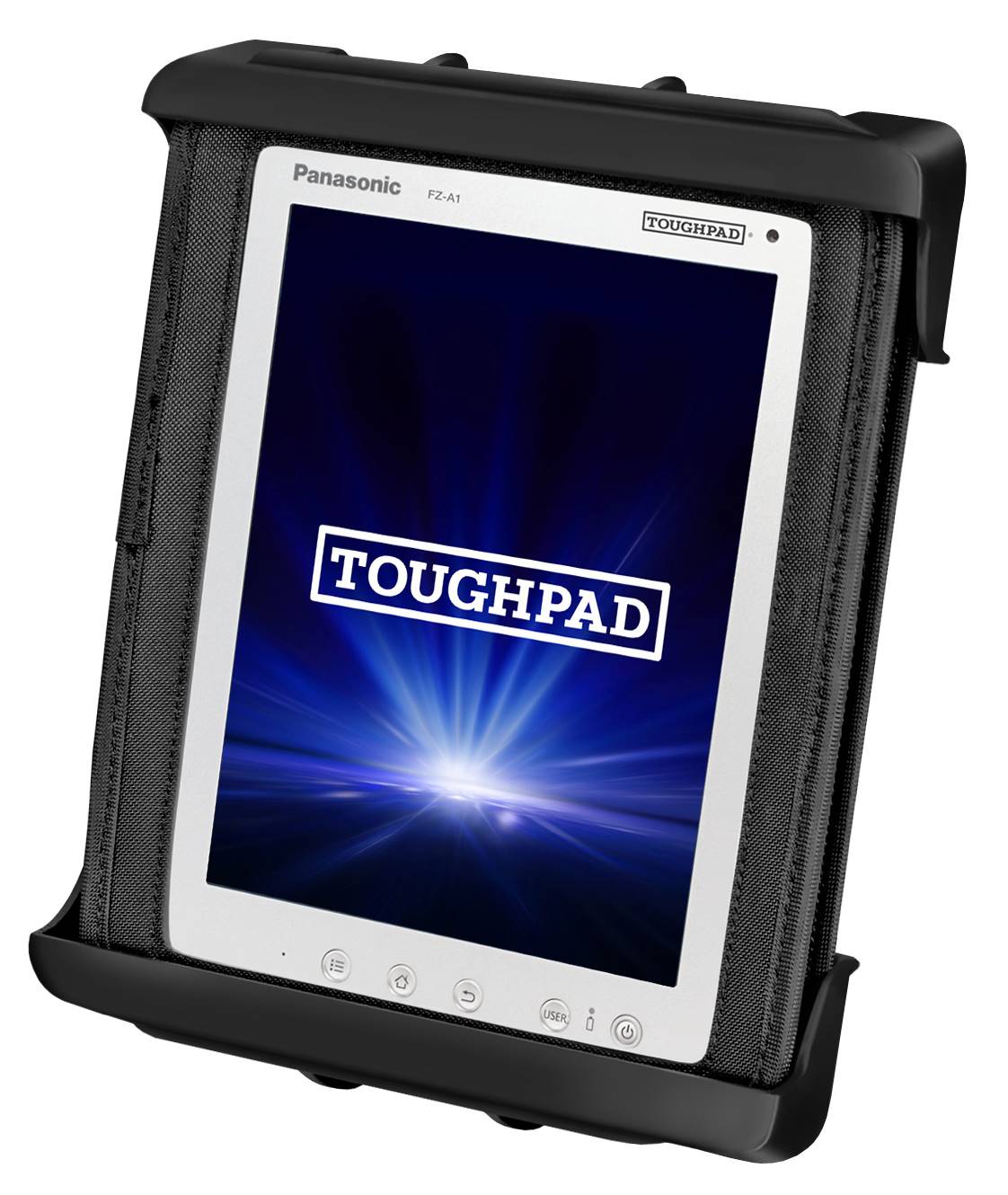

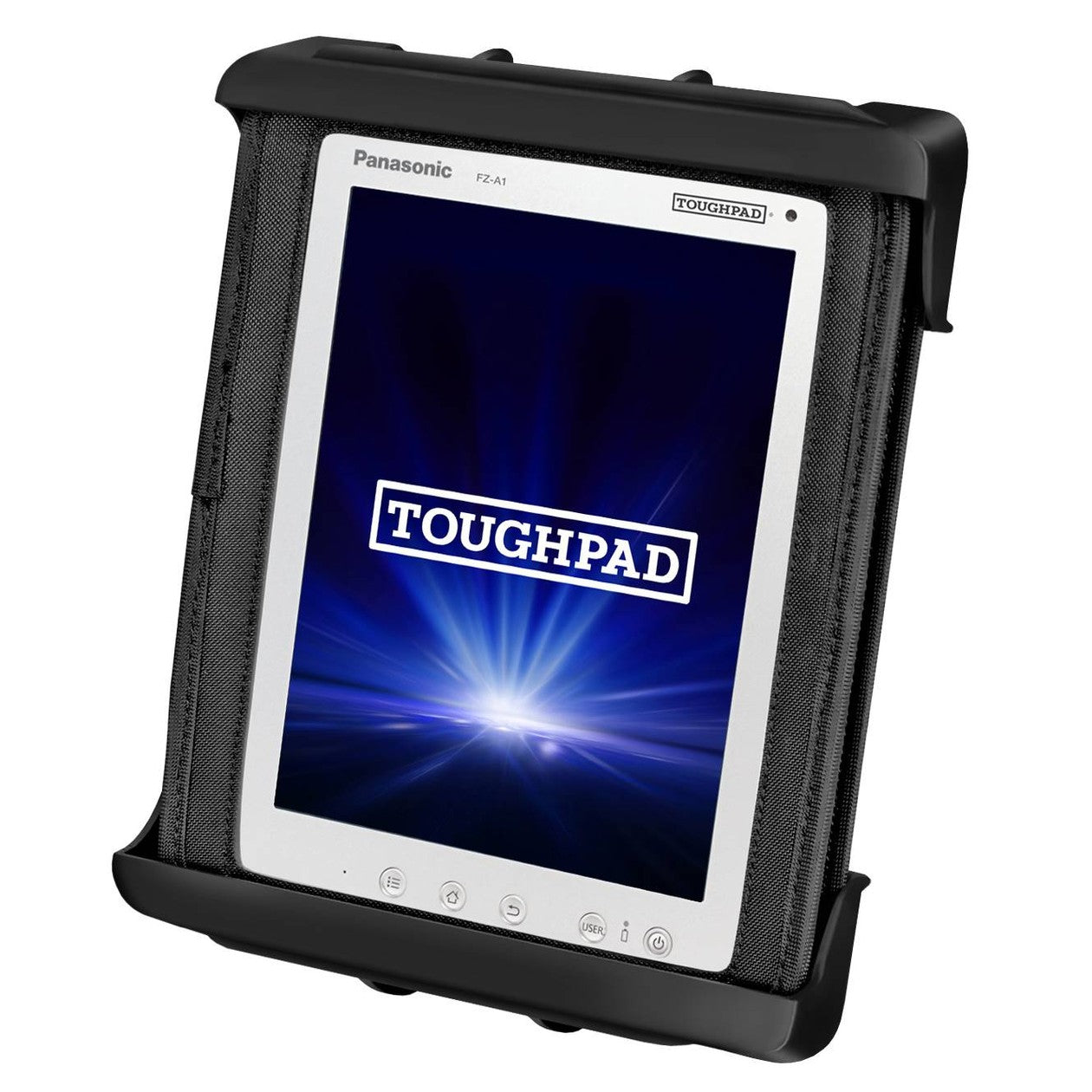

RAM-HOL-TAB9U_RAM Tab-Tite Tablet Holder for Panasonic

The spring loaded cradle for the Panasonic Toughpad FZ-A1 is durable and allows for easy removal or
insertion of your tablet. Cup ends are designed to optimize the functionality of your tablet,
allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was
intended. With a full complement of compatible mounts, you are sure to find the perfect solution for
all your mobile needs. Included is a set of four nuts and bolts to connect the cradle to any RAM
components or mounts that contain the universal AMPs hole pattern. Cradle Dimensions: Height:
10.625" to 12.625" Width: 6.38" to 9.25" Depth: 0.13" to 2" Note: Product consists of holder
only. Case not included.

HARDWARE INCLUDED
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

HOLDER DIMENSIONS
Height Range: 10.625" - 12.625"
Width Range: 6.38" - 9.25"
Depth Range: .13" - 2"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded holder secures the Panasonic Toughpad FZ-A1 with case; interchangeable end cups allow
you to modify the holder when upgrading devices

Compatible with B and C size RAM round ball bases for attaching a double socket arm; ball and
socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
0.9 lbs.
