RAM-GDS-CHARGE-V7CU_GDS Modular 10-30V Hardwire Charger
RAM-GDS-CHARGE-V7CU_GDS Modular 10-30V Hardwire Charger
Regular price
$46.99 USD
Regular price
Sale price
$46.99 USD
UPC:
793442015878
Mfg Part #:
RAM-GDS-CHARGE-V7CU
Availability:
In Stock
Part Number:
RAM-GDS-CHARGE-V7CU
Quantity
Couldn't load pickup availability
Share
- Description

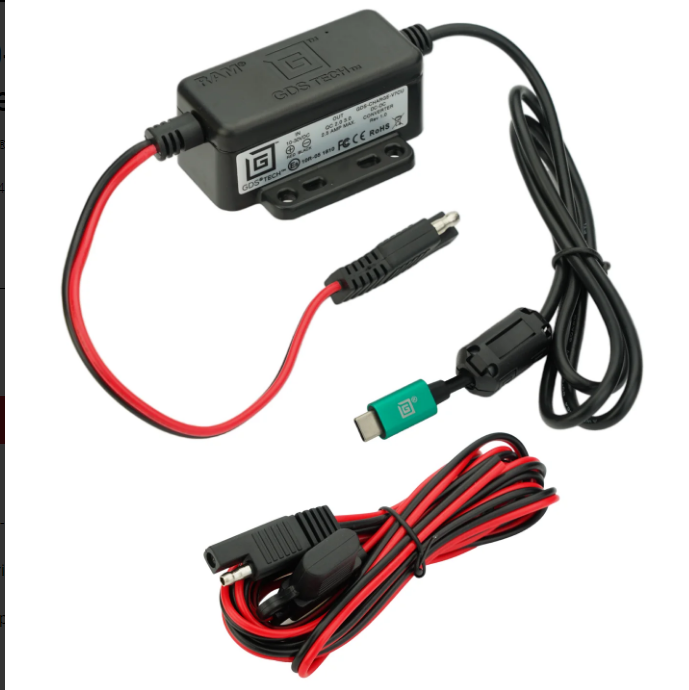

GDS® Modular 10-30V Hardwire Charger with Male USB Type-C
The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 9V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger does not support Power Delivery. Always Protected. Always Connected.®
The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 9V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger does not support Power Delivery. Always Protected. Always Connected.®
PACKAGING TYPE
Poly Bag
INPUT VOLTAGE
10-30VDC
OUTPUT VOLTAGE
5.42-9VDC
OUTPUT CURRENT
2.5A max
INPUT CONNECTOR
Bare Wire
INPUT CABLE LENGTH
2.5 Meters
OUTPUT CONNECTOR
USB Type-C Male
OUTPUT CABLE LENGTH
1 Meter
OPERATING TEMPERATURE
-10°C to +70°C
STORAGE TEMPERATURE
-40°C to +70°C
REGULATORY
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
CERTIFICATIONS
CE Certification
E-Mark Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton
WARRANTY
3 year warranty
WEIGHT
0.47 lb
