RAM-D-101-C-ID1U_RAM Double Ball Mount with 100x100mm V
RAM-D-101-C-ID1U_RAM Double Ball Mount with 100x100mm V
Regular price
$122.49 USD
Regular price
Sale price
$122.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
D size 2.25"
UPC:
793442908910
Mfg Part #:
RAM-D-101-C-ID1U
Availability:
In Stock
Part Number:
RAM-D-101-C-ID1U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

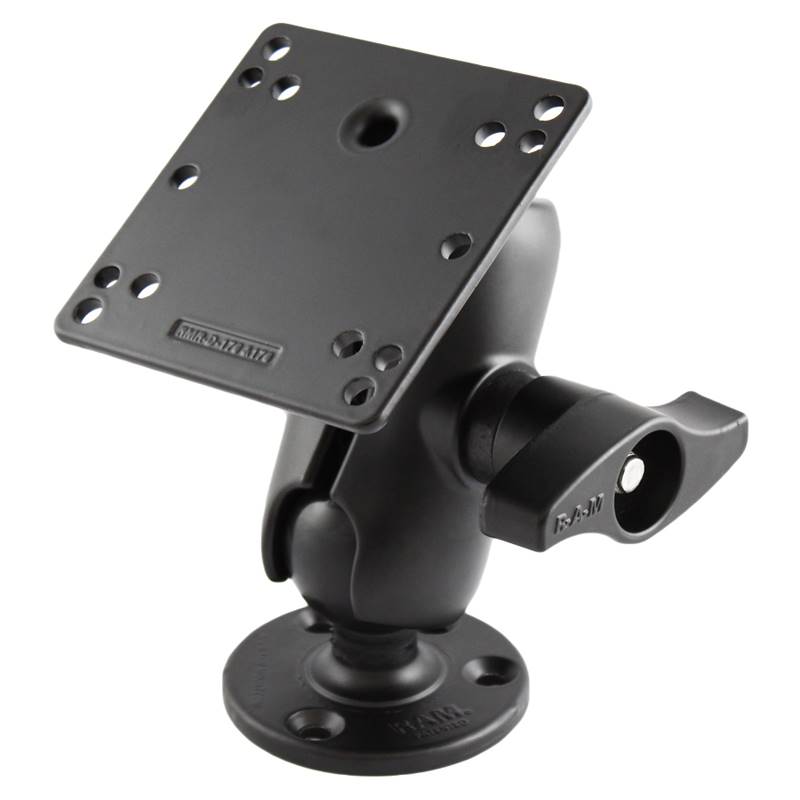

The RAM-D-101-C-ID1U consists of a 3.68" diameter round base, SHORT length double socket arm and
4.75" square plate. The 3.68" diameter round base has pre-drilled holes, including two holes at 180
degrees and three holes at 120 degrees. The 4.75" square plate contains 4x100mm holes and 4x75mm
holes in each corner. Designed into the mount is a 2.25" diameter patented rubber ball and socket
system with adjustment points at both socket ends of the arm. Rubber ball and socket technology
allows for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS
Overall Height: 7.875"
SOCKET-TO-SOCKET LENGTH
3.6"
HOLE PATTERN
See Drawings
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
3.18 lbs.
4.75" square plate. The 3.68" diameter round base has pre-drilled holes, including two holes at 180
degrees and three holes at 120 degrees. The 4.75" square plate contains 4x100mm holes and 4x75mm
holes in each corner. Designed into the mount is a 2.25" diameter patented rubber ball and socket
system with adjustment points at both socket ends of the arm. Rubber ball and socket technology
allows for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS
Overall Height: 7.875"
SOCKET-TO-SOCKET LENGTH
3.6"
HOLE PATTERN
See Drawings
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
3.18 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:D Size 2.25" Rubber Ball
- Weight Capacity:Up to 6 lbs
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:3.18 lbs.
