RAM ATV/UTV Double Ball Rail Mount w

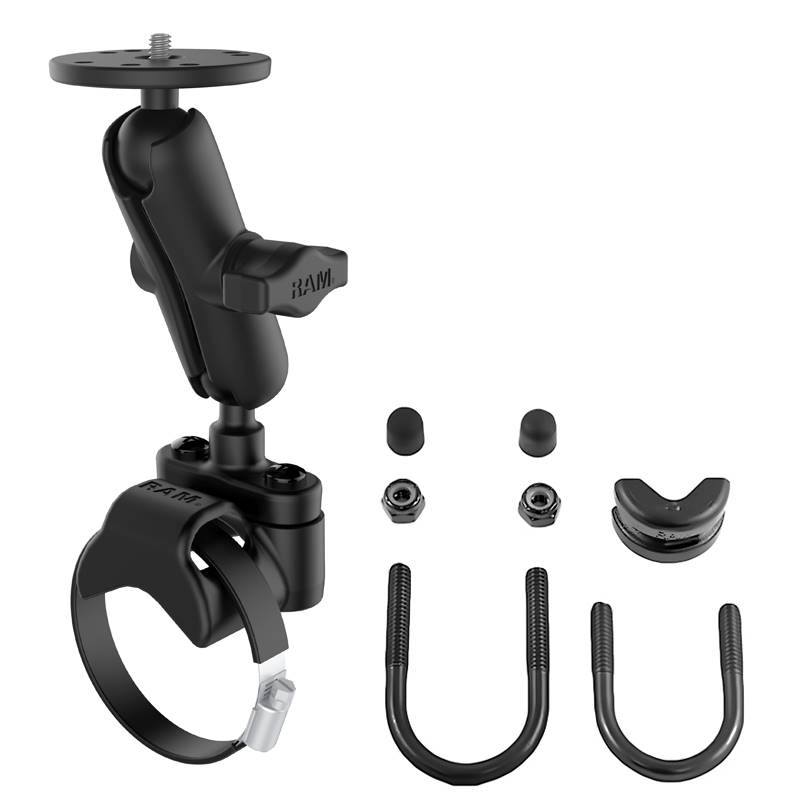

The RAM-B-149Z-2-202AU consists of a steel strap base, u-bolt bases, double socket arm and 2.5" dia.
round base with 1/4"-20 threaded post. Designed for a clean installation, the included roll bar base
accommodates most common tubing sizes on UTV’s and ATV's, allowing for the placement of the RAM
rubber ball base. Safely concealing a strap clamp in a compact housing, you won’t have to worry
about exposed sharp edges or unwanted loosening. The camera base contains a 1" rubber ball that is
connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered,
the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20
threaded steel stud will connect to any standard female thread found on camcorders and digital
cameras.

HARDWARE INCLUDED
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.85 lbs.
