RAM-B-108-GA38U_RAM Strap Hole Clamp Mount for Garmin 6
RAM-B-108-GA38U_RAM Strap Hole Clamp Mount for Garmin 6
Regular price
$75.99 USD
Regular price
Sale price
$75.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442927669
Mfg Part #:
RAM-B-108-GA38U
Availability:
Out Of Stock
Part Number:
RAM-B-108-GA38U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

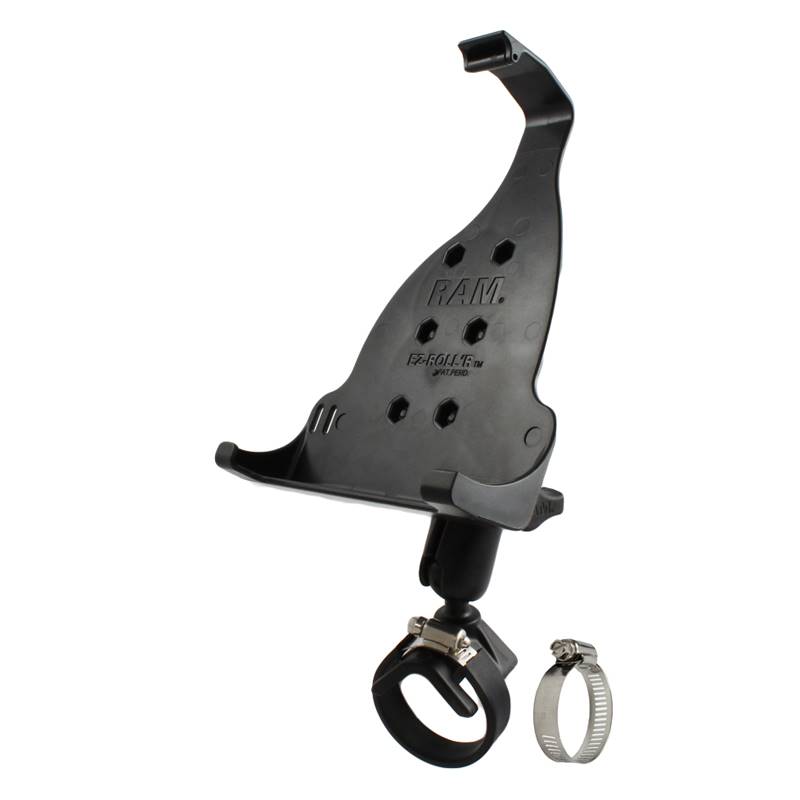

The RAM-B-108-GA38U consists of a v-saddle strap base, double socket arm and custom high strength
composite cradle for the Garmin GPSMAP 695 and 696. The v-saddle strap base accommodates rails from
1" to a maximum of 3" in diameter. To mount the base, place the saddle shaped plate on the rail then
wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with
a screw driver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative
mounting base for aircraft such as the Bonanza or Beech with a “throw over yoke”.
HARDWARE INCLUDED
Assembly Hardware
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
CLAMP RANGE
1" - 2.1" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.61 lbs.
composite cradle for the Garmin GPSMAP 695 and 696. The v-saddle strap base accommodates rails from
1" to a maximum of 3" in diameter. To mount the base, place the saddle shaped plate on the rail then
wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with
a screw driver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative
mounting base for aircraft such as the Bonanza or Beech with a “throw over yoke”.
HARDWARE INCLUDED
Assembly Hardware
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
CLAMP RANGE
1" - 2.1" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.61 lbs.
Included Straps:
- (1) QTY 6" long metal strap
- (1) QTY 8" long metal strap
- (1) QTY 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the rail
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.61 lbs.
