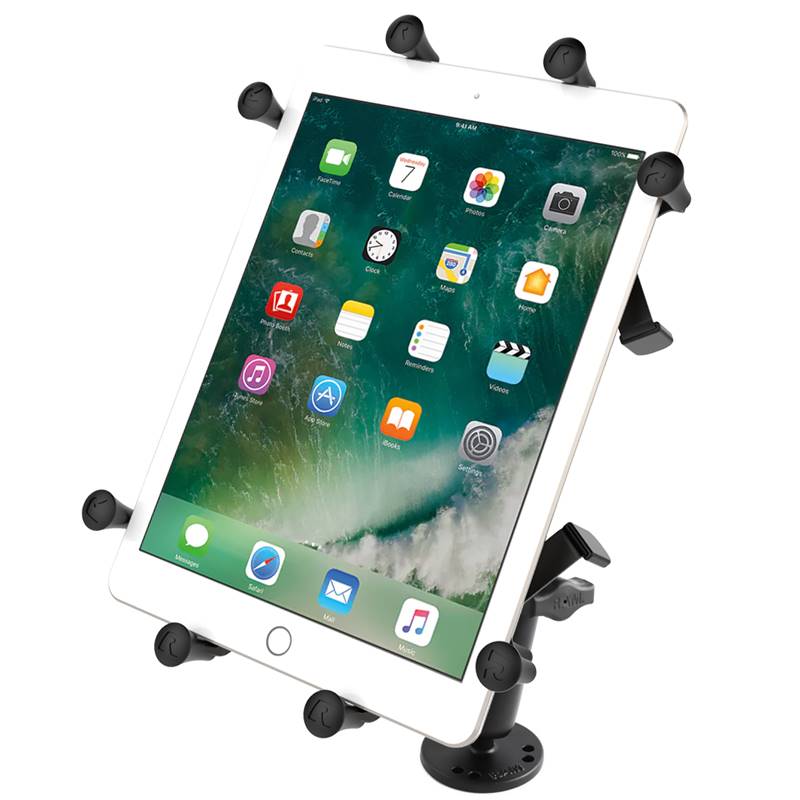

RAM-B-101-C-UN9U_RAM X-Grip Drill-Down Double Ball Moun

The RAM-B-101-C-UN9U consists of a long length B size 1" double socket arm and two 2.5" diameter
round ball bases that contain the universal AMPS hole pattern, as well as the RAM X-Grip universal
holder for 9"-10" tablets. The RAM X-Grip features an 'X' design that expands and contracts to
provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs
located on the back of the cradle for quick release of your tablet. RAM ball and socket technology
allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the
life of your phone by providing shock and vibration damping. This version of the RAM X-Grip holder
is compatible with tablets that will fit the dimensions listed below. It is important to verify the
dimensions of device with its case, sleeve, or skin when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

SOCKET-TO-SOCKET LENGTH
5.31"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Complete flat surface, drill-down mounting solution for the RAM X-Grip 9"-10" tablet holder

Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet;
easy access grip knobs on the back of the holder allow for the quick release of your device

Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
1.85 lbs.
