RAM-B-101-A-237U_RAM Drill-Down Double Ball Mount with

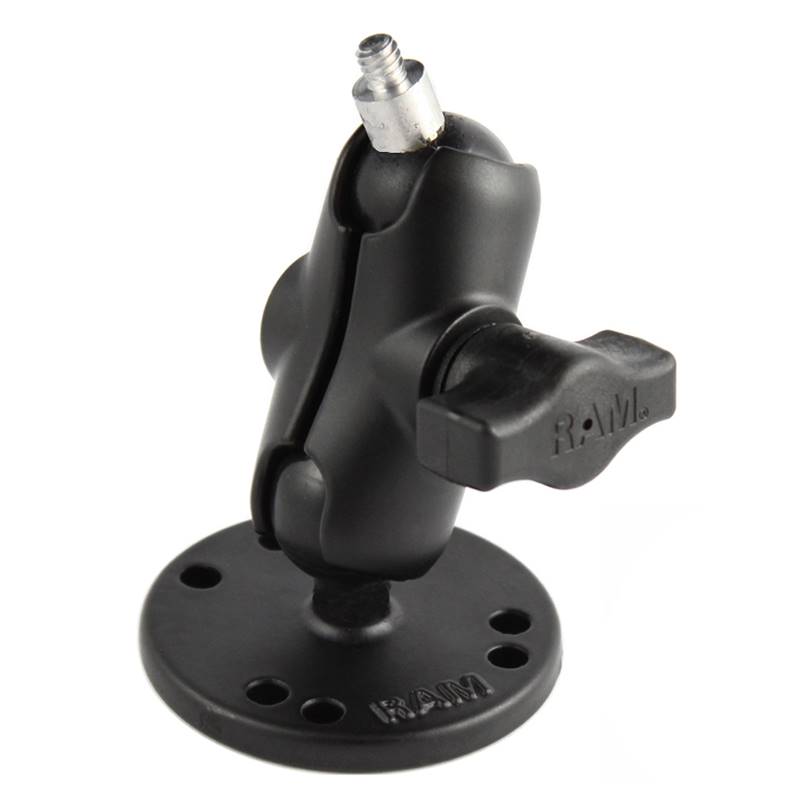

The RAM-B-101-A-237U consists of a short double socket arm, 2.5" diameter round base and 1" diameter
rubber ball, connected to a 1/4"-20 camera thread. The male thread matches most standard camera and
camcorder female threads found on the bottom of the camera. The round base contains pre-drilled
holes, including the universal AMPs hole pattern. Designed into the mount is a 1" diameter patented
rubber ball and socket system with adjustment points at both ends of the socket arm; this with a
twist of the arm knob, allows for infinite articulation and optimum viewing angles.

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.37 lbs.
