RAM-101U-IP1_RAM Double Ball U-Bolt Mount with Round Pl

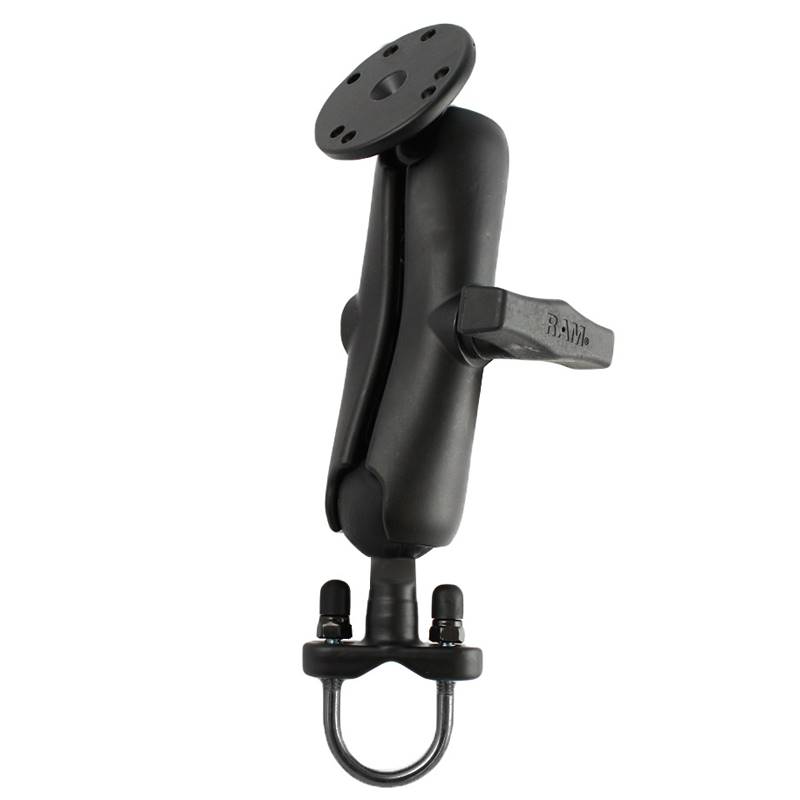

The RAM-101U-IP1 consists of a zinc coated u-bolt base, double socket arm and 2.5" diameter round
base that contains the universal AMPs hole pattern. Included in this package is hardware that will
accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed
over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a
minimum width of 0.5". The mount is designed with a RAM 1.5" diameter patented rubber ball and
socket system that has adjustment points at both ends of the double socket arm; this allowing for
almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
1.24 lbs.
