RAM-101U-B-EX1_RAM Double Ball Mount with Excalibur Mou

Universal double socket arm mount with two round bases. Both bases have the AMPS hole pattern. The
mount is 5.24" tall at maximum extension and is collapsible. Constructed of marine grade aluminum
with stainless hardware and black powder coat finish. Rubber ball and socket feature dampens shock
and vibration. For most applications, mount will support up to ten pounds.

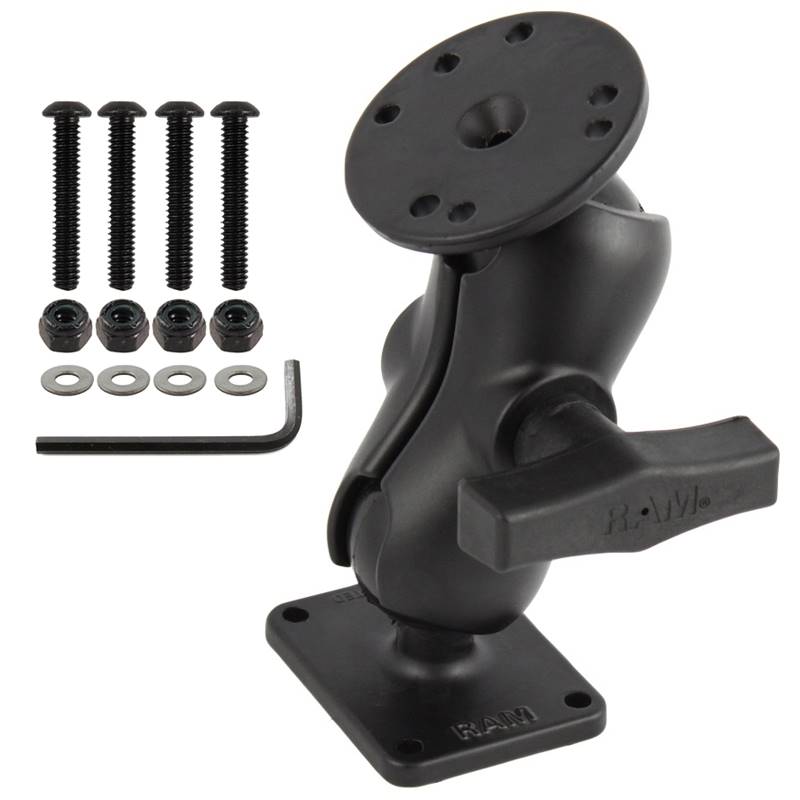

HARDWARE INCLUDED
(4) 1/4"-20 x 1.5" Machine Screws
(4) 1/4"-20 Nylock Nuts
(4) 1/4" Stainless Steel Washers
(1) 5/32" Key Wrench

PRODUCT DIMENSIONS
Overall Height: 5.225"

SOCKET-TO-SOCKET LENGTH
2.5"

HOLE PATTERN
Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 1.5" x 2"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
1.05 lbs.
