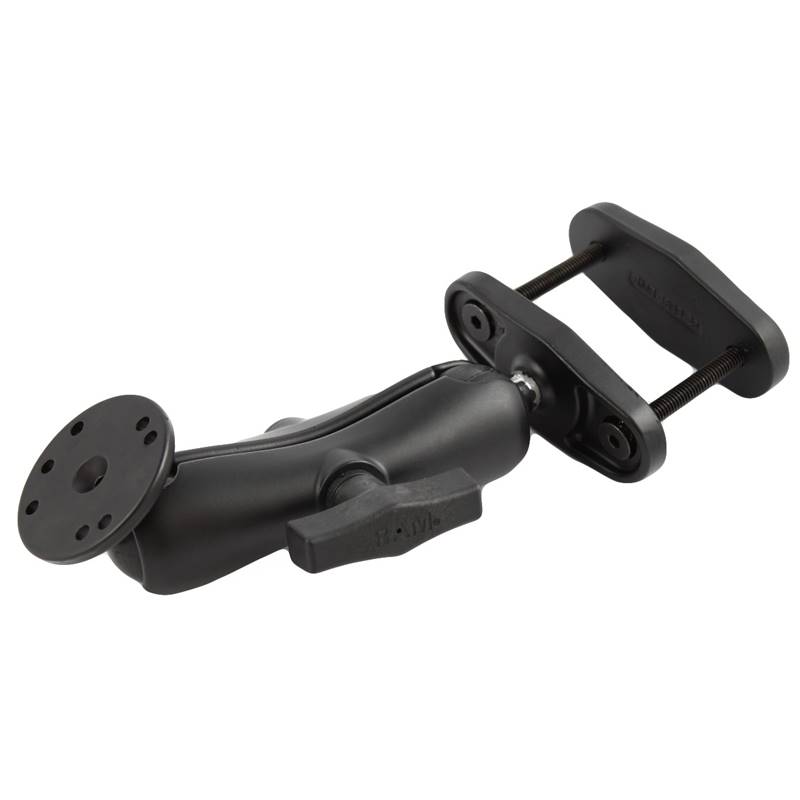

RAM-101U-247-25_RAM 2.5" Square Post Clamp Mount with R

The RAM-101U-247-25 consists of a double socket arm, round 2.5" diameter round base with the
universal AMPS hole pattern and 2.5" clamp base. The clamp base will wrap around a maximum width of
2.5" and is tightened by screwing the two plates together with the included nuts and bolts. Rubber
ball, socket technology dampens shock and vibration, as well as allows for almost infinite
adjustment, perfect viewing angles.

HARDWARE INCLUDED
(2) 5/16"-18 x 3" Macine Screws
(2) 5/16"-18 Nylock Nuts

PRODUCT DIMENSIONS
Overall Height: 7.85"

CLAMP RANGE
2.5" max width

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
1.55 lbs.
