RAM-101B2-TC-SAM29C-V3FCU_RAM Tough-Case Power Delivery

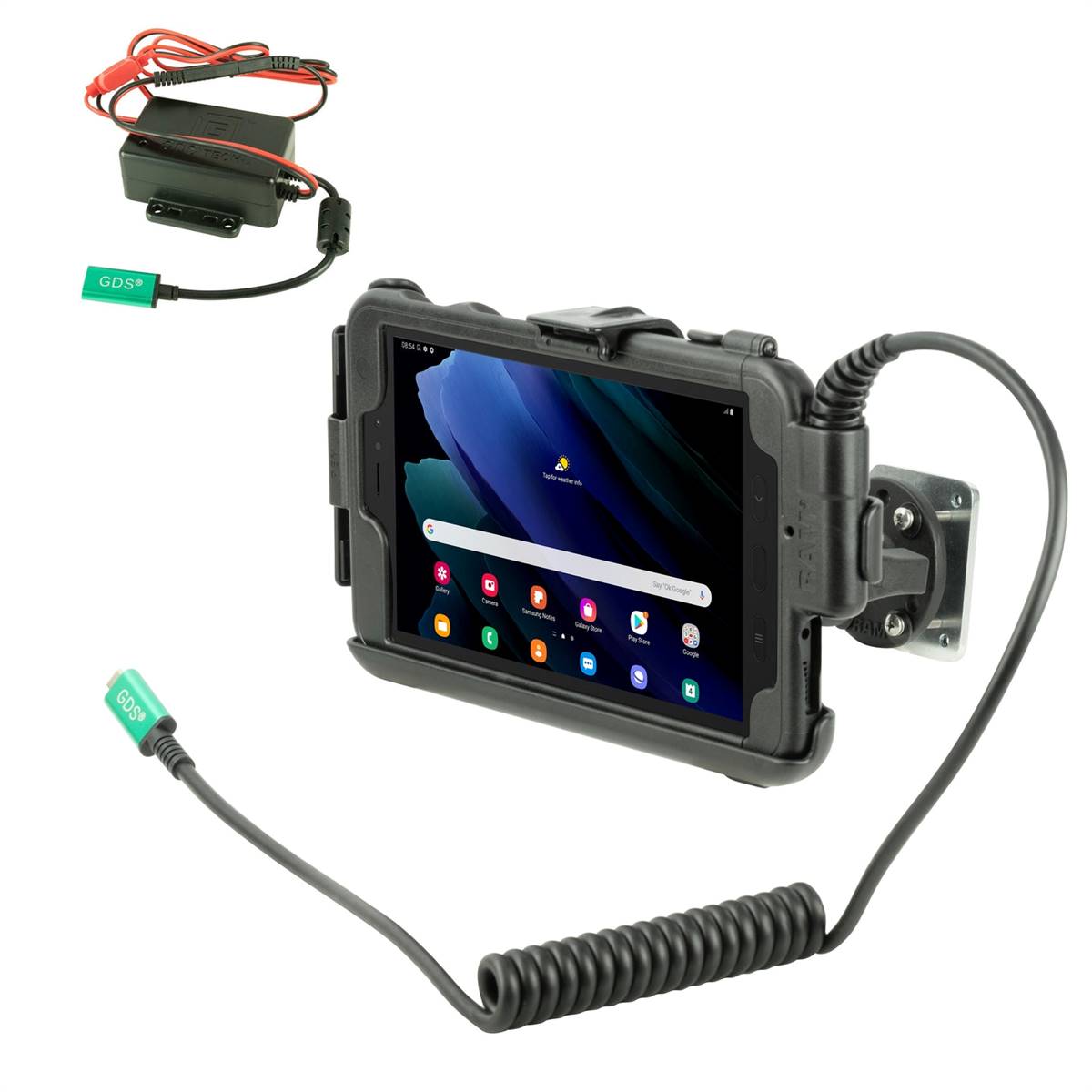

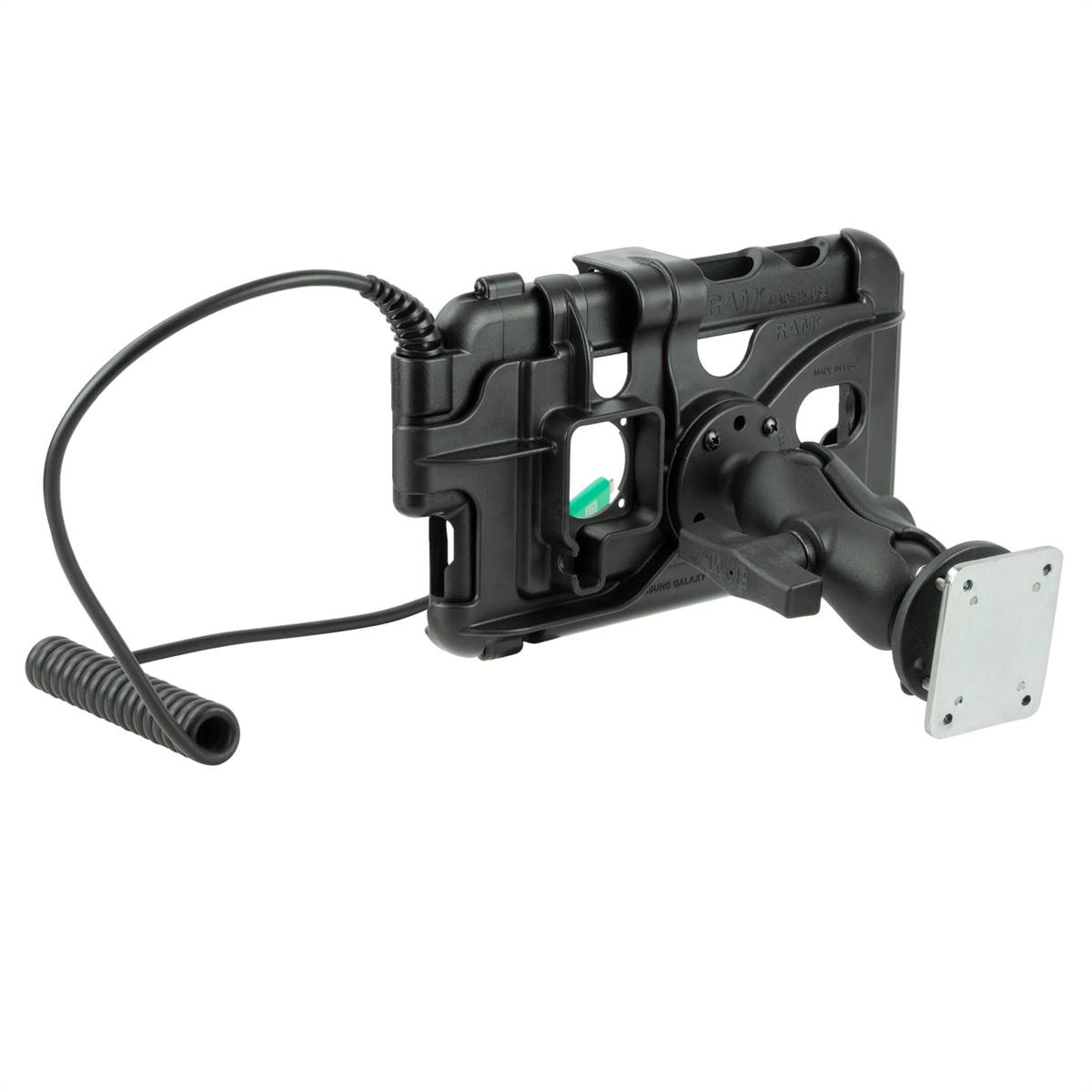

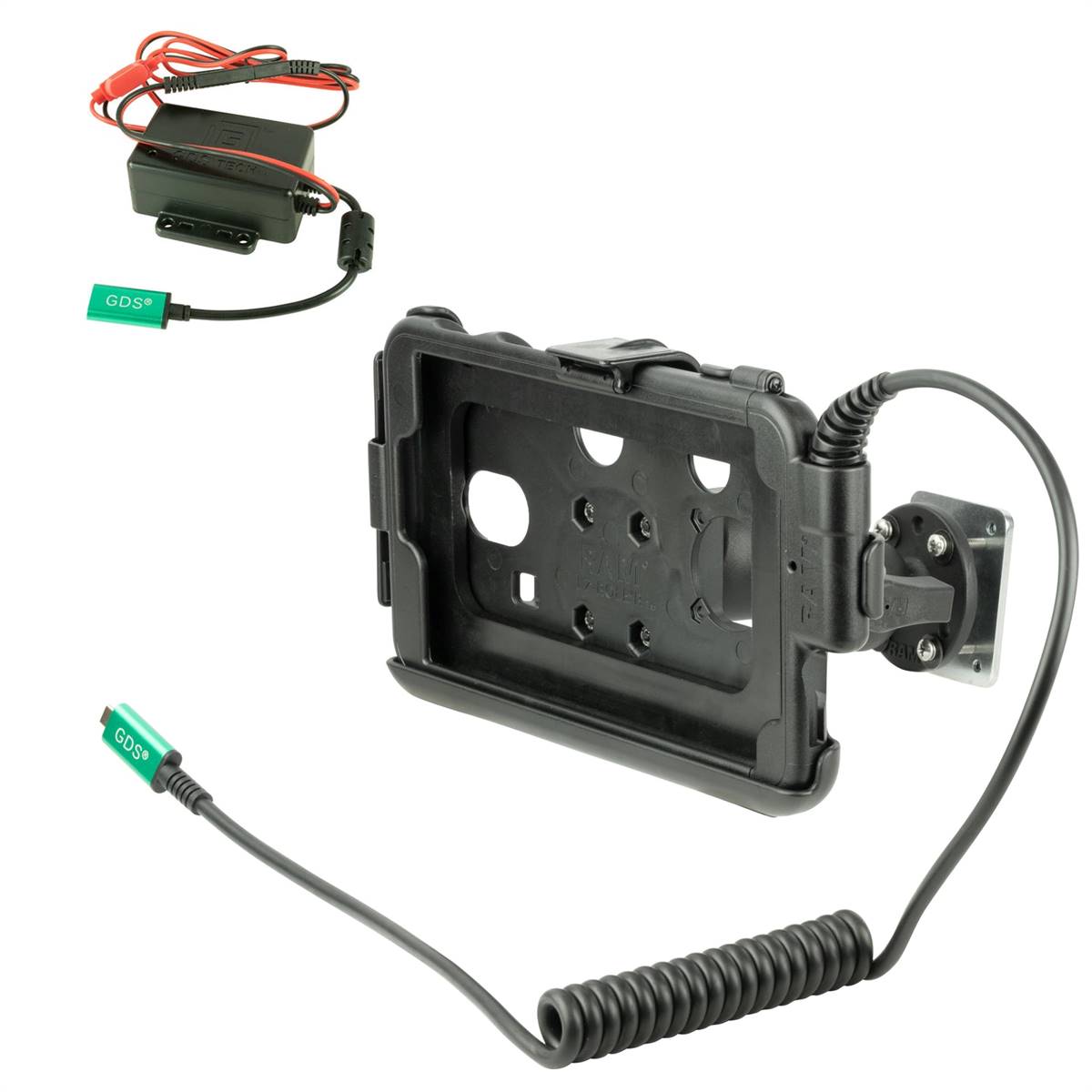

This RAM Tough-Case bundle is a rugged vehicle mount including the RAM Tough-Case, Tough-Case holder, C size double ball mount, backing and hardwire charger. The RAM Tough-Case is a two-piece enclosure for the Samsung Galaxy Tab Active3 that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance. This bundle provides power to the device through the hardwire charger connected from the vehicle's battery to the RAM Tough-Case via USB Type-C connection. This tethered USB Type-C connection perfectly supports the Samsung Galaxy Tab Active3's new "No Battery Mode" feature, allowing you to remove the battery and remain connected to the tablet with all of its functions. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, short length double socket arm, and a GDS modular hardwire charger with Power Delivery – an ideal solution for providing power to the Galaxy Tab Active3. Get the Heat Out! with RAM Tough-Case.

FEATURES

RAM Tough-Case provides a tethered USB Type-C to USB Type-C connection providing charging capabilities for the Samsung Galaxy Tab Active3

Includes RAM Tough-Case holder, RAM C size double ball mount, backing plate and hardwire charger for dashboard installation

Supports the Tab Active3's 'No Battery Mode' feature

RAM Tough-Case has integrated 7ft coiled cable and durable oversized strain relief to keep the tablet connected to the power source while undocked

Integrated S Pen holder

hardware included
Assembly Hardware(1) 2.10" x 2.60" Steel Backing Plate(4) #8-32 x 1" Screws(4) #8 Split Lock Washers(4) #8 Flat WashersModular Hardwire ChargerCable Clamp Assembly

socket to socket length
2.5"

hole pattern
4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

ball size
C Size (1.5")

weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

materials
Marine-grade aluminumHigh strength composite

packaging type
Poly Bag

input voltage
12V - 24V (Vehicles)

output voltage
5V @ 3A (15W)9V @ 3A (27W)12V @ 3A (36W)15V @ 2.5A (37.5W)

power output
37.5W Total

output current
3A max

input connector
Female USB Type-C

input cable length
1.2 Meters including 2 Pole Flat Marine Connector

output cable length
150mm

operating temperature
-20°C to +70°C

storage temperature
-40°C to +85°C

compliance
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)

certifications
FCC, IC, CE RCM, WEEE, RoHS Compliant USB Power Delivery 2.0 and 3.0 Support

Warranty
3 year warranty

Weight
2.65 lb
