RAM-101-RM1U_RAM Double Ball Mount with Raymarine Hardw
RAM-101-RM1U_RAM Double Ball Mount with Raymarine Hardw
Regular price
$89.49 USD
Regular price
Sale price
$89.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442925405
Mfg Part #:
RAM-101-RM1U
Availability:
Out Of Stock
Part Number:
RAM-101-RM1U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

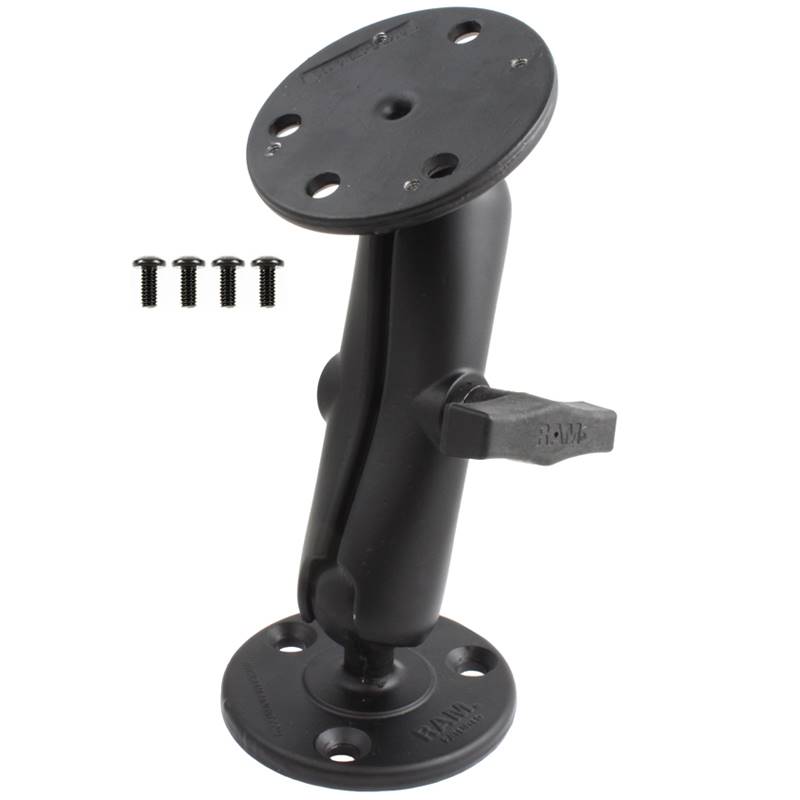

The RAM-101-RM1U consists of a double socket arm, 2.5" diameter round base with the universal AMPS
hole pattern and 3.68" round base. The 3.68" round base contains pre-drilled holes that connect to
Raymarine devices listed below. Designed into the mount is a 1.5" diameter patented rubber ball and
socket system with adjustment points at both socket ends of the arm. Rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(4) #10-24 x 3/8" Machine Screws
PRODUCT DIMENSIONS
Overall Height: 7.35"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
PLATE SIZE
3.68" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.55 lbs.
hole pattern and 3.68" round base. The 3.68" round base contains pre-drilled holes that connect to
Raymarine devices listed below. Designed into the mount is a 1.5" diameter patented rubber ball and
socket system with adjustment points at both socket ends of the arm. Rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(4) #10-24 x 3/8" Machine Screws
PRODUCT DIMENSIONS
Overall Height: 7.35"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
PLATE SIZE
3.68" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.55 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:1.55 lbs.
