RAP-B-407-UN8U_RAM X-Grip Mount with RAM Tough-Wedge fo

OVERVIEW

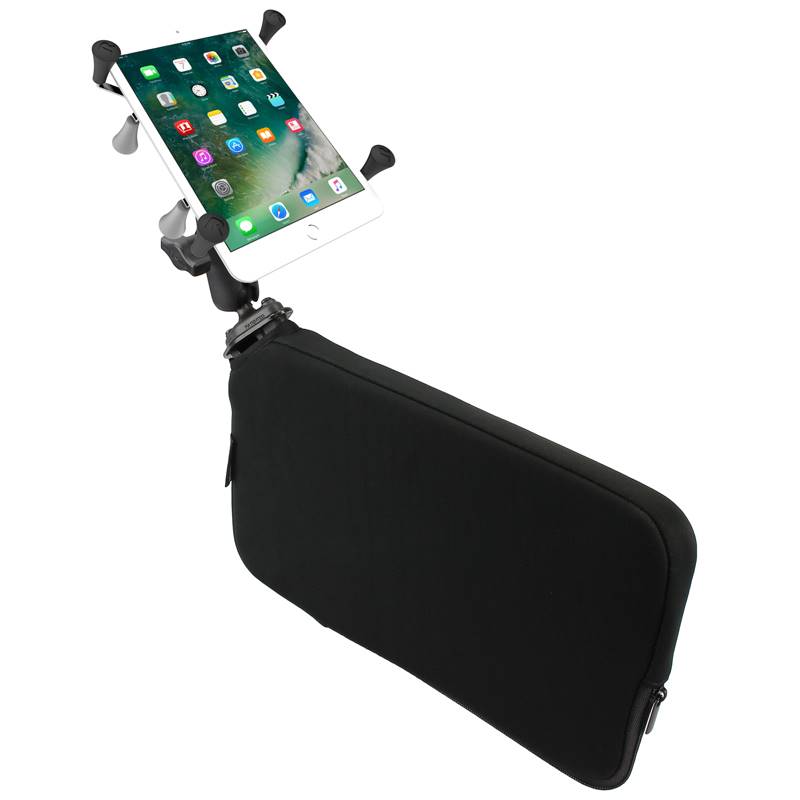

The RAP-B-407-UN8U consists of the Tough-Wedge vehicle seat wedge base, composite double socket arm, and X-Grip universal small tablet holder. This mount fits conveniently in the gap between your vehicle's passenger seat and center console, creating a temporary but also very rugged mounting platform for your phone. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. With the turn of a knob you can set your most any 7"-8" tablet to the perfect viewing and operating angle. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet.
The X-Grip is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.






COMPATIBLE ITEMS
B SIZE 1" BALL

Cradle Dimensions

Minimum Width = 2.5" (Minimum Height = 7")
Maximum Width = 5.75" (Minimum Height = 4")
Depth = 0.875"

HARDWARE INCLUDED
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS
Width Range: 2.5" - 5.75"
Depth Range: .875" max

WEDGE DIMENSIONS
Length: 13.25"
Height: 8.25"
Thickness: 1"

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag
