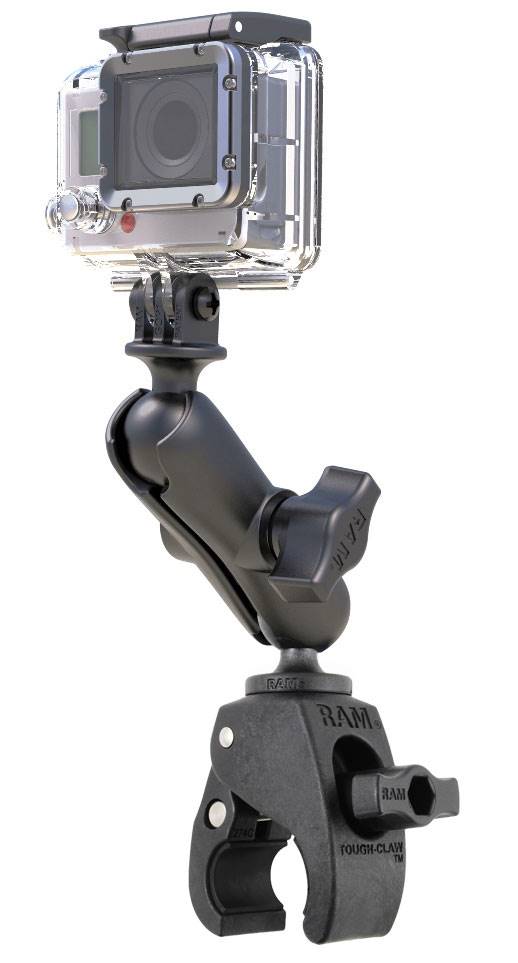

RAP-B-400-GOP1U_RAM Tough-Claw Double Ball Mount with U

The RAP-B-400-GOP1U consists of the small Tough-Claw base, double socket arm and B size 1" diameter
ball with custom GoPro/Action Camera adapter. The RAM Tough-Claw is the perfect mounting base for
quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The
Tough-Claw can be clamped on rails from 0.625" - 1.5" outer diameter. The GoPro/Action Camera
adapter attaches directly to the under-side of the camera, replacing the factory mounting bracket.
Clamping Range (Rail/Tube Surfaces): 0.625" to 1.5" Clamping Range (Flat Surfaces): 0" to 1.14"

HARDWARE INCLUDED
Assembly Hardware

CLAMP RANGE
.625" - 1.5" diameter
0" - 1.14" flat surfaces

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Action camera adapter includes 1" B size RAM rubber ball and is compatible with GoPro and most
other brands; attaches to underside of cameras

Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from
.625" to 1.5" in outer diameter; rubber pads provide stable gripping and protection of mounting
surface

Made of high-strength composite and stainless steel hardware for durability and reliability in the
most demanding environments

Backed by a lifetime warranty


WEIGHT
0.6 lbs.
