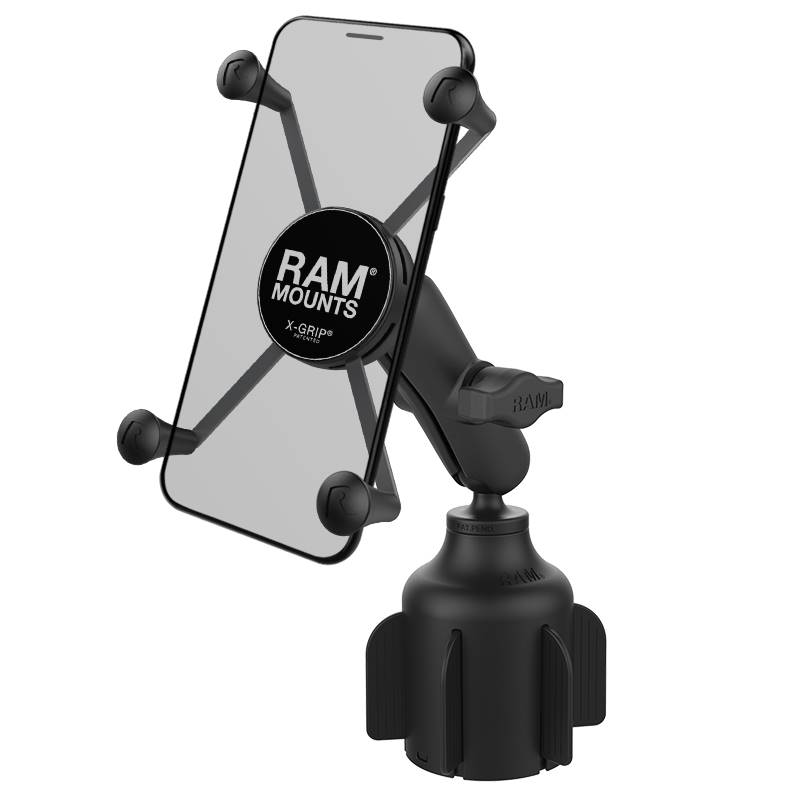

Sometimes, it's all about the design. If you are looking for a compact mount for your cell phone
without that cookie cutter shape, you've found it. The RAM X-Grip has a clean and clever four leg
design that sports great holding power without hiding your phone behind foam pads and plastic. This
mount comes with the RAM Stubby cup holder mount. The durable composite shell construction and
flexible support fins can be trimmed to size make this cup holder base a portable and versatile
solution. The RAM ball and socket system allows for articulation at both ends of the double socket
arm creating almost infinite adjustment and perfect viewing angles. Compatible with any vehicle cup
holder with an inside diameter range of 2.57" to 3.5". The X-Grip includes a device tether
recommended for outdoor applications. The cradle is compatible with handheld devices that will fit
the dimensions listed below. It is important to verify the dimensions of your handheld device with a
case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
PRODUCT DIMENSIONS
Overall Height: 9.15"
HOLDER DIMENSIONS
Width Range: 1.75" - 4.5"
Depth Range: .875" max
WEDGE DIMENSIONS
Fits cup holders between 2.57" - 3.5" inside diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
FEATURES:
Includes RAM Stubby cup holder ball base, medium length B size RAM double socket arm, and large
RAM X-Grip phone holder
Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding
your phone; includes optional device tether for peace of mind during rugged use
Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for
durability and reliability in the most demanding environments
Backed by a lifetime warranty
WEIGHT
1.55 lbs.
without that cookie cutter shape, you've found it. The RAM X-Grip has a clean and clever four leg
design that sports great holding power without hiding your phone behind foam pads and plastic. This
mount comes with the RAM Stubby cup holder mount. The durable composite shell construction and
flexible support fins can be trimmed to size make this cup holder base a portable and versatile
solution. The RAM ball and socket system allows for articulation at both ends of the double socket
arm creating almost infinite adjustment and perfect viewing angles. Compatible with any vehicle cup
holder with an inside diameter range of 2.57" to 3.5". The X-Grip includes a device tether
recommended for outdoor applications. The cradle is compatible with handheld devices that will fit
the dimensions listed below. It is important to verify the dimensions of your handheld device with a
case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
PRODUCT DIMENSIONS
Overall Height: 9.15"
HOLDER DIMENSIONS
Width Range: 1.75" - 4.5"
Depth Range: .875" max
WEDGE DIMENSIONS
Fits cup holders between 2.57" - 3.5" inside diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
FEATURES:
Includes RAM Stubby cup holder ball base, medium length B size RAM double socket arm, and large
RAM X-Grip phone holder
Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding
your phone; includes optional device tether for peace of mind during rugged use
Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for
durability and reliability in the most demanding environments
Backed by a lifetime warranty
WEIGHT
1.55 lbs.
Purchase Includes:
- (QTY. 1) Optional Tether Included
Cradle Dimensions:
- Minimum Width = 1.75" (Minimum Height = 5.5")
- Maximum Width = 4.5" (Minimum Height = 3.25")
- Depth = 0.875"
- Material:High Strength Composite &
Stainless Steel - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
- Weight:1.55 lbs.
RAP-B-201U
RAM-HOL-UN10BU
RAP-B-299-4U
