RAP-B-101U-G4_RAM Composite Double Ball Mount with Hard

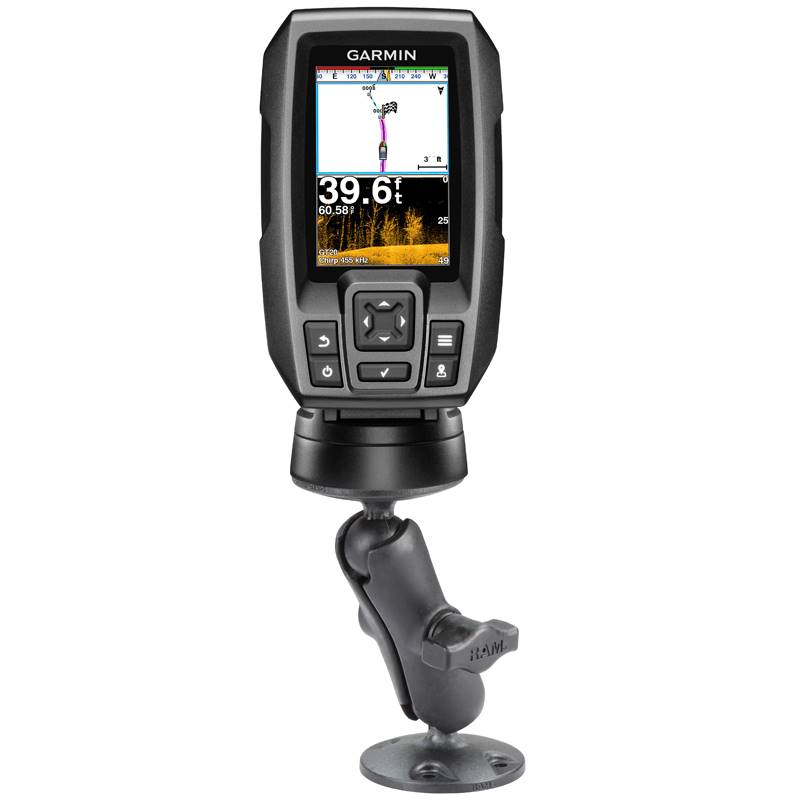

The RAP-B-101U-G4 consists of a 2.5" diameter round base with the universal AMPS hole pattern,
double socket arm and round adapter base that attaches directly to the bottom of the Garmin echo
and Striker 4 Series. Designed into the mount is a 1" diameter patented rubber ball and socket
system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles. Included is hardware
that is used to attach the Garmin echo to the RAM Mount.

HARDWARE INCLUDED
(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts

PRODUCT DIMENSIONS
Overall Height: 5.4"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.4 lbs.
