RAP-101-PV4-2P-MAG88U
RAP-101-PV4-2P-MAG88U

Alternative Views:
Price: $99.99


Free Shipping
Availability: IN STOCK!!
PART NUMBER:: RAP-101-PV4-2P-MAG88U
Qty:

Description

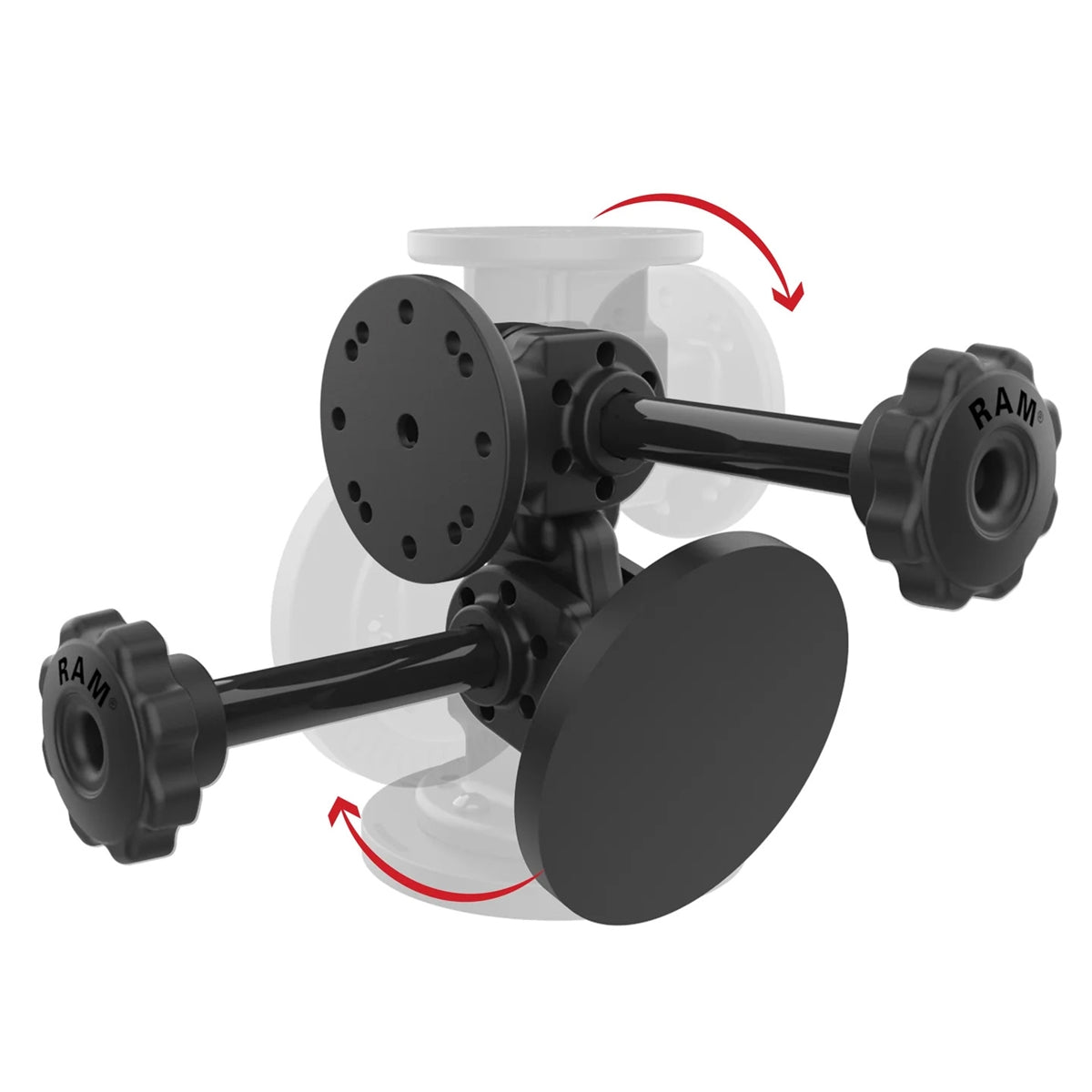

The RAM® Dual 90-Degree Pivot Magnetic Mount with Knob (RAP-101-PV4-2P-MAG88U) is a low-profile, magnetic mounting solution with two articulation hinges in opposing directions so users can easily pivot their device up to 180-degrees in each direction. One end features both 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock while the other end features the RAM® Tough-Mag™ magnetic base. This solution uses tooth-lock washers and extended knobs at each joint to allow users to adjust their device to achieve the ideal viewing angle. The RAM® Tough-Mag™ base features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Features

  • Low-profile, magentic mounting solution for heavy-duty environments
  • Dual articulation joints pivot up to 180-degrees in each direction; extended knobs for easy adjustments
  • One end features two 2-hole AMPS and two 4-hole AMPS patterns, second end features the RAM® Tough-Mag™ 88mm base
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

product dimensions:

Overall Height: 5.47"
Overall Width with Knobs: 6.31"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"

plate size:

Top Plate: 2.5" Diameter
Magnetic Base: 3.46" Diameter

materials:

High strength composite

packaging type:

Poly Bag

Weight:

1.12 lb
