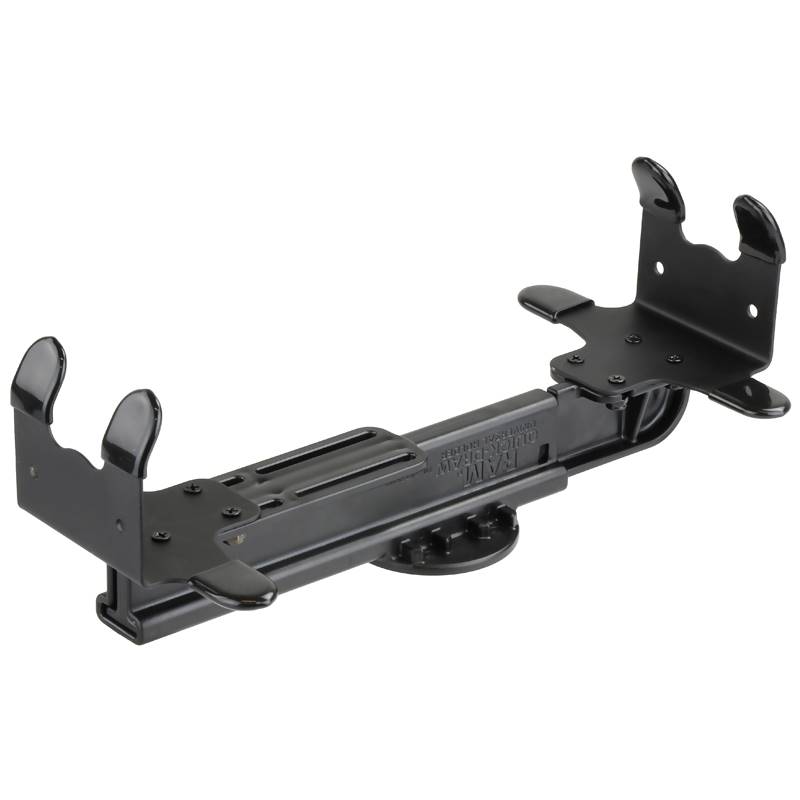

RAM-VPR-102_RAM Quick-Draw Holder for Canon BJC-85 & i8

The RAM-VPR-102 is designed to hold Canon BJC-85 portable printers. The cradle uses a unique patent
pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At
each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly
around either edge of the printer. Complete kits are available as stand alone systems or integrate
one with your existing RAM products.

HARDWARE INCLUDED
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts

PRODUCT DIMENSIONS
Overall Width: 12.4"
Overall Depth: 6.9"
Overall Height: 2"

HOLDER DIMENSIONS
Max Height: 1.75"
Width Range: 8" - 14.5"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
Powder coated steel
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.9 lbs.
