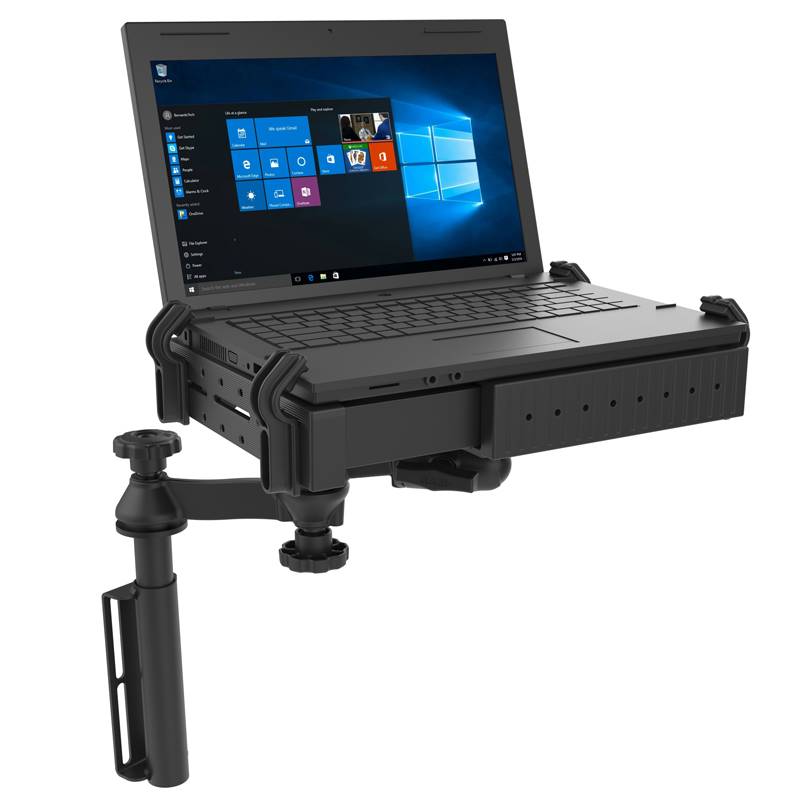

RAM-VB-181-SW1_RAM Vertical Drill-Down Laptop Mount

This drill-down laptop stand system installs quickly and easily into the specified vehicles using
the existing hardware of the passenger side seat rails. This configuration provides a telescoping
feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of
reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint
provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is
spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four
adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and
horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not
blocking ports or drives. A screen support and USB light are also available to accessorize the tray.
Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS
or other electronics.

HARDWARE INCLUDED
Assembly Hardware
(2) Backing Plates
(4) 1/4"-20 x 1" Hex Bolts
(4) 1/4"-20 Hex Nuts
(8) 1/4" Flat Washers
(4) 1/4" Lock Washers
(2) #10-24 x 3/4" Machine Screws
(2) #10 Fender Washers
(1) 1/4"20 x 3/4" Machine Screw

TRAY DIMENSIONS
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

HOLE PATTERN
See Drawing

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE
Box

FEATURES:
RAM No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments

Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most
laptops

Made of powder-coated steel and marine-grade aluminum

Backed by a lifetime warranty


WEIGHT
11.0 lbs.
