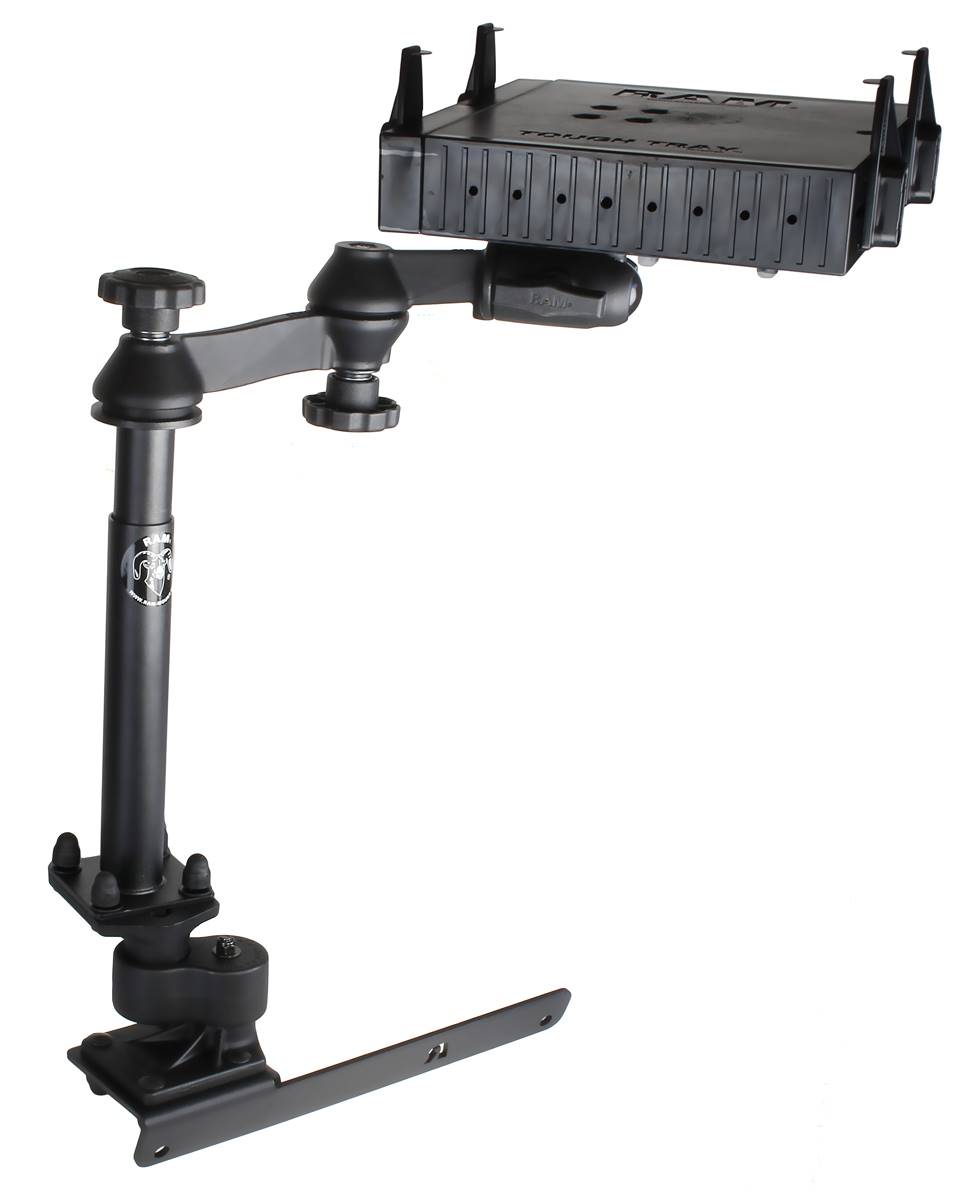

RAM-VB-178A-SW1-FL_RAM No-Drill Laptop Mount with Flat

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the
existing hardware of the passenger side seat rails. This configuration provides a telescoping
feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of
reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint
provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is
spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four
FLAT adjustable retaining arms; these allow for your laptop to close completely while in the RAM
Tough-Tray. These arms can be moved both vertically and horizontally. This allows for a custom fit
for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support
and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray
facilitate the mounting of additional RAM systems to support GPS or other electronics.

HARDWARE INCLUDED
Assembly Hardware
(2) M8-1.25 x 60mm Hex Bolts
(2) 3/4" Stand-Offs
(2) 5/16" Flat Washers

TRAY DIMENSIONS
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

HOLE PATTERN
Seat Bolt Distance: 13.25" center to center

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE
Box

WEIGHT
15.0 lbs.
