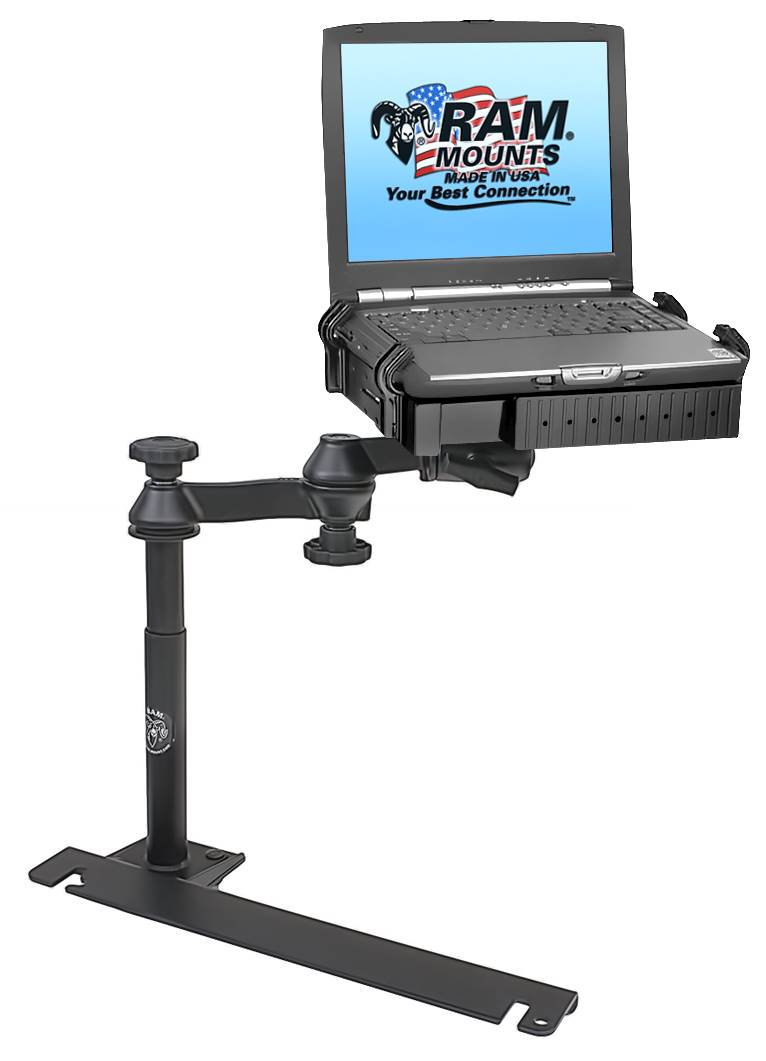

RAM-VB-129-SW1_RAM No-Drill Laptop Mount for Sprinter V

This RAM No-Drill vehicle base and laptop stand installs quickly into the specified vehicles using
the existing hardware of the passenger side seat rails, and provides a telescoping feature that
ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for
passenger and driver access to the mounted device. The RAM rubber ball and socket system provides
additional adjustability as well as shock and vibration damping, and the RAM Tough-Tray is spring-
loaded to accommodate 10" to 16" wide laptops (and 17" wide screens). This laptop holder features
four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally
– allowing for a custom fit to support various sizes of laptops without blocking ports and drives. A
screen support and USB light are also available to accessorize the RAM Tough-Tray, and hole
patterns on the perimeter of the holder facilitate the mounting of additional RAM systems to
support GPS devices and other electronics.

HARDWARE INCLUDED
Assembly Hardware
(2) M10 x 40mm Hex Bolts
(2) M10 Lock Washers

TRAY DIMENSIONS
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

HOLE PATTERN
Seat Bolt Distance: 16.5" center to center

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite

PACKAGING TYPE
Box

ADDITIONAL INFORMATION
In 2005 and 2011 model year vehicles, the seat leg bolts may be tied to the air bag system.
Tampering with these may result in disabling the air bag system and causing a severe safety hazard.
The installation of this product into these vehicles should only be done by a Dodge Factory
Authorized technician or Up-Fitter familiar with Police, Fire and Rescue Vehicles and their fleet
use.

FEATURES:
RAM No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments

Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most
laptops

Made of powder-coated steel and marine-grade aluminum

Backed by a lifetime warranty


WEIGHT
16.0 lbs.
