RAM-VB-102-SW1_RAM No-Drill Laptop Mount for '00-06 che

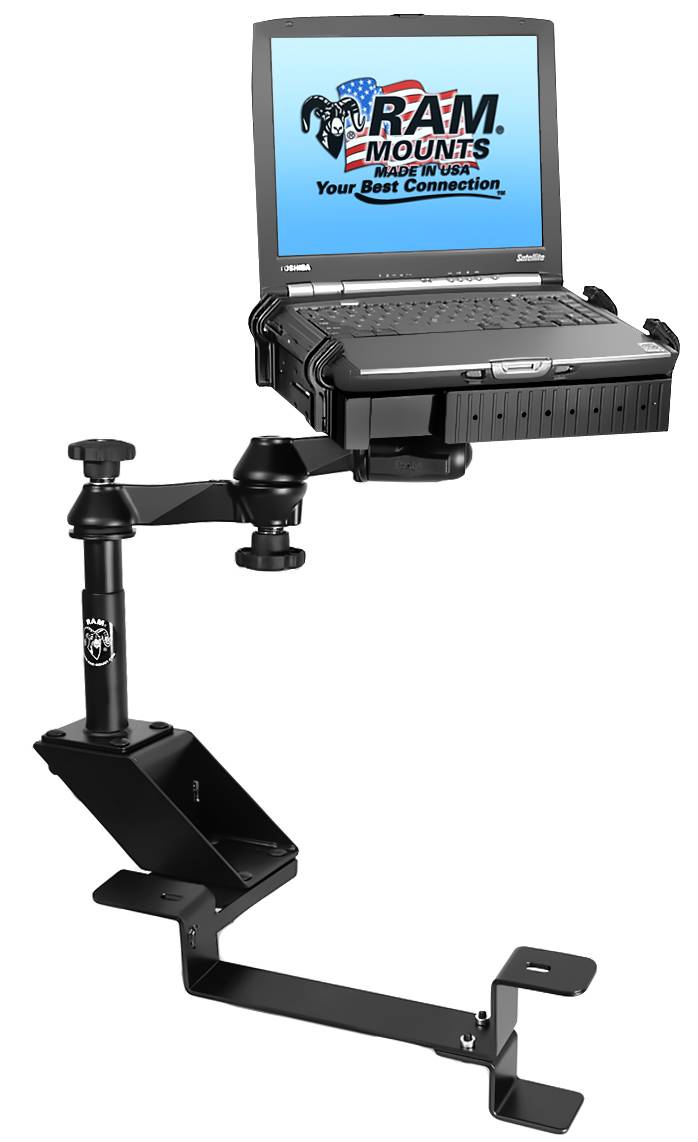

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the
existing hardware of the passenger side seat rails. This configuration provides a telescoping
feature that ranges from 9 to 13 inches which includes the fixed 4 inch riser. Dual swing arms
provide articulation and 12 inches of reach for passenger and driver access to the mounted device.
Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration
isolation. The RAM Tough-Tray is spring loaded to accommodate 10" to 16" wide laptops & (17" wide
screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can
be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of
laptops and the freedom of not blocking ports or drives. A screen support and USB light are also
available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of
additional RAM systems to support GPS or other electronics.

HARDWARE INCLUDED
Assembly Hardware

TRAY DIMENSIONS
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

HOLE PATTERN
Seat Bolt Distance: 11.75" center to center

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Box

ADDITIONAL INFORMATION
For vehicles with power seats please see RAM-VB-131A-SW1. Angled step moves mount away from
passenger leg space. There are a total of 3 pieces of steel that make this part, 2 are welded
together and the 3rd is bolted. Base will not interfere with factory installed console or 4WD lever.

WEIGHT
15.0 lbs.
