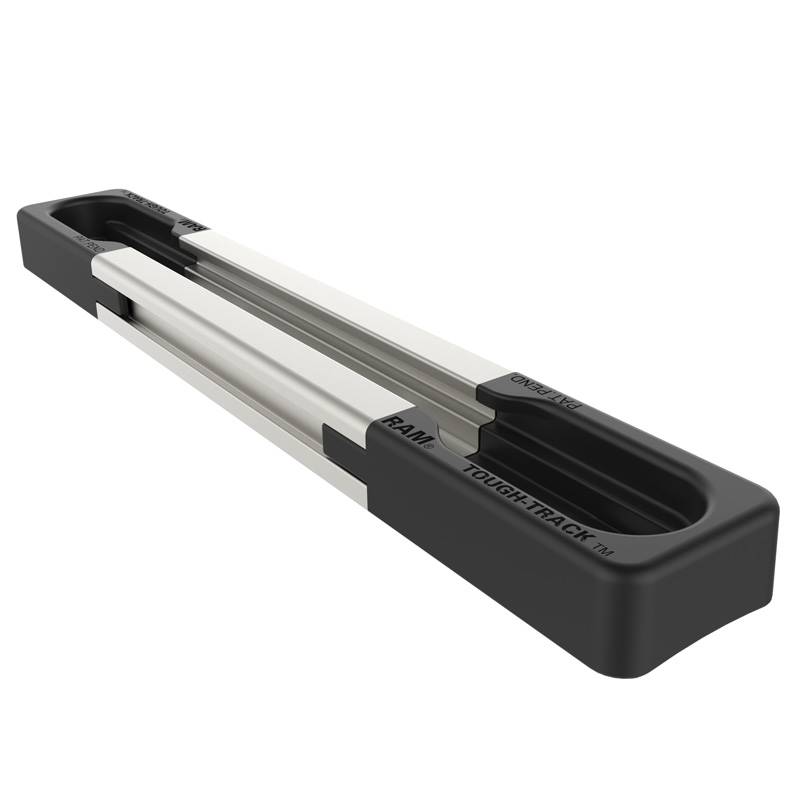

RAM-TRACK-EXA-3U_3" Modular Aluminum RAM Tough-Track

With the RAM Tough-Track, flat surface mounting possibilities are nearly endless for ATVs, cars,
combines, motorboats, tractors, trucks and more. The extruded aluminum version of the RAM Tough-
Track can be drilled to any flat surface and is designed for use with #8 screws for easy
installation – hardware not included. Made to be a dependable and rugged mounting solution, the
anodized aluminum provides a smooth slide across the track and anti-corrosion protection. The RAM-
TRACK-EXA-3U features 3” of usable track length (aluminum portion), while the included top loading
end caps add about 1.5” in length to each end (3” of additional length). Using the end caps allows
for two installation options: either use both top loading end caps to create insertion points on
both ends of the track, or use one top loading end cap and close the opposite end with the included
flush end cap. The Extruded Aluminum Tough-Track is compatible with the RAM Center Loader and 90
Degree Connector, as well as a wide variety of RAM track bases to attach devices like action
cameras, fishing rods, phones and tablets.

PRODUCT DIMENSIONS
Overall Length: 6"
Overall Width: .9"
Track Thickness: .43"
Inside Track Length: 3"

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.17 lbs.
