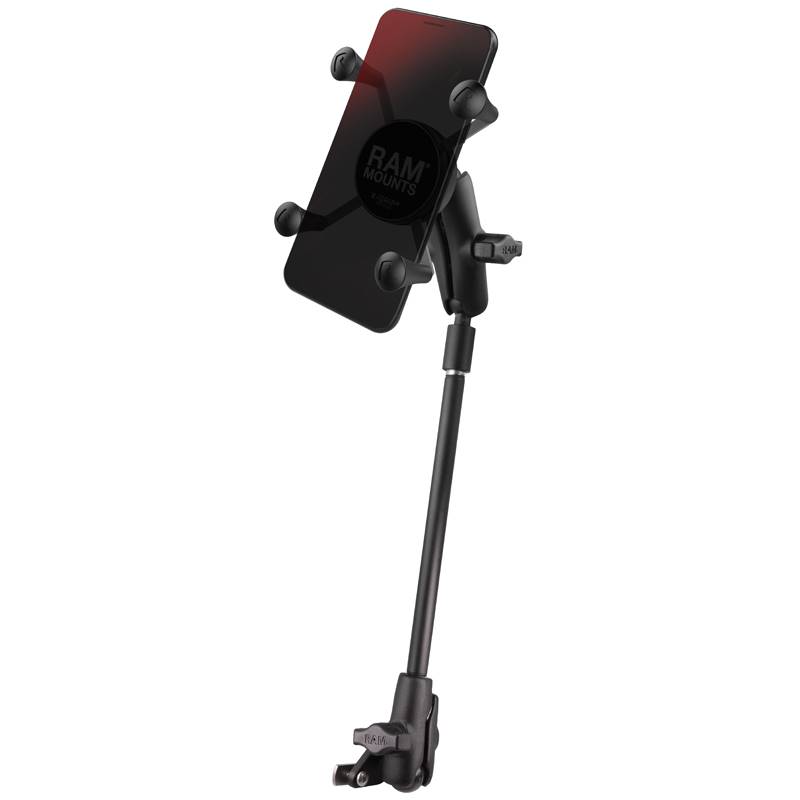

This kit includes a B size RAM diamond ball base with a universal hardware pack that accommodates
the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the
included short single socket arm, 9" pipe extension, and medium double socket arm, connect and
adjust the RAM X-Grip universal phone holder to your ideal position. The popular, spring-loaded
RAM X-Grip provides a perfect fit for a wide variety of phones.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
T-BOLT DIMENSIONS
Large: .48" x .95"
Small: .375" x .593"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Retail Bag
ADDITIONAL INFORMATION
WEIGHT
1.1 lbs.
the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the
included short single socket arm, 9" pipe extension, and medium double socket arm, connect and
adjust the RAM X-Grip universal phone holder to your ideal position. The popular, spring-loaded
RAM X-Grip provides a perfect fit for a wide variety of phones.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
T-BOLT DIMENSIONS
Large: .48" x .95"
Small: .375" x .593"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Retail Bag
ADDITIONAL INFORMATION
WEIGHT
1.1 lbs.
Cradle Dimensions:
- Minimum Width = 1.875" (Minimum Height = 4.25")
- Maximum Width = 3.25" (Minimum Height = 2.25")
- Depth = 0.875"
Included Mounting Hardware:
- (QTY. 2) #10-32 x 1/2" Machine Screw
- (QTY. 2) #10-32 T-Nut (3/8" x 5/8")
- (QTY. 2) #10-32 T-Nut (1/2" x 1")
- (QTY. 2) M4 x 12mm Machine Screw
- (QTY. 2) M4 x 20mm Machine Screw
- (QTY. 2) M4 Stainless Steel Washer
- (QTY. 2) M4 Nylock Nut
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Weight:1.1 lbs.
RAM-B-200-9-201
RAM-B-238-WCT
RAM-HOL-UN7BU
