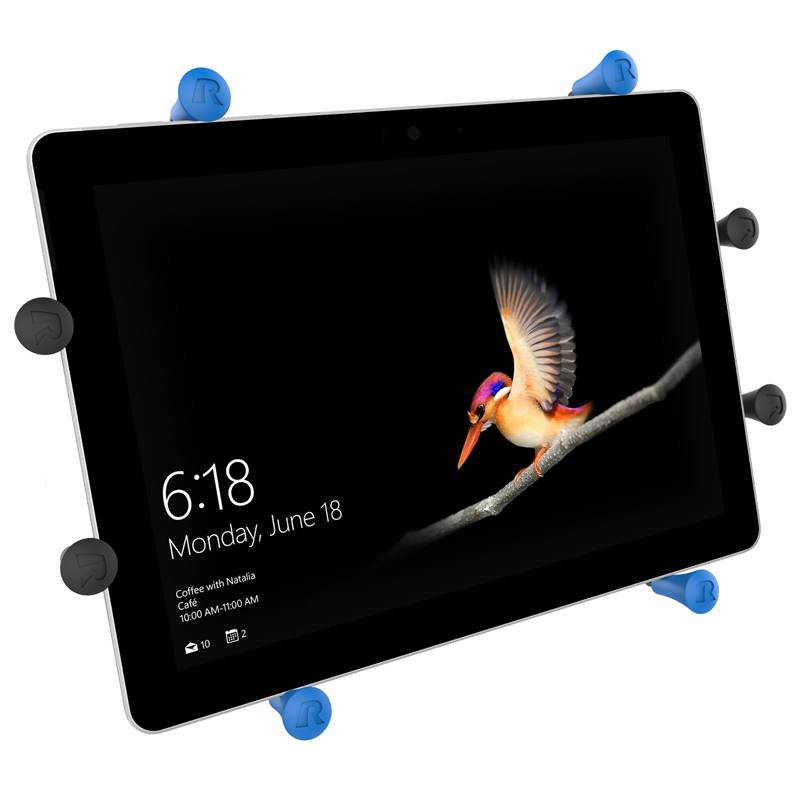

RAM-HOL-UN9-DFSU-Custom Mounts-RAM X-GRIP UNIVERSAL 10" TABLET HOLDER DESIGNED FOR SURFACE GO

This version of the RAM X-Grip was made specifically to support the Microsoft Surface Go tablet in
any rugged environment, and consists of a composite spring-loaded cradle, expandable grip arms, and
additional bottom support keeper. For quick release of the device, simply squeeze the easy access
knobs located on the back of the holder. Included side stabilizers allow you to rotate and secure
the Surface Go in either portrait or landscape mode. Featuring AMPS and VESA hole patterns on the
back of the holder, the RAM-HOL-UN9-DFSU is compatible with a wide variety of RAM double ball
mounts. The RAM X-Grip cradle is compatible with tablets devices that will fit the dimensions
listed below. It is important to verify the dimensions of your tablet with a case/sleeve/skin when
determining the overall size.

HARDWARE INCLUDED
Assembly Hardware
(4) #8-32 x 1/2" Sheet Metal Screws
(2) #8-32 x 5/8" Sheet Metal Screws
(1) Optional Tether

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

HOLE PATTERN
(3) 4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.33 lbs.
