RAM-HOL-UN9-235U_RAM X-Grip Mount with Double U-Bolt Ba

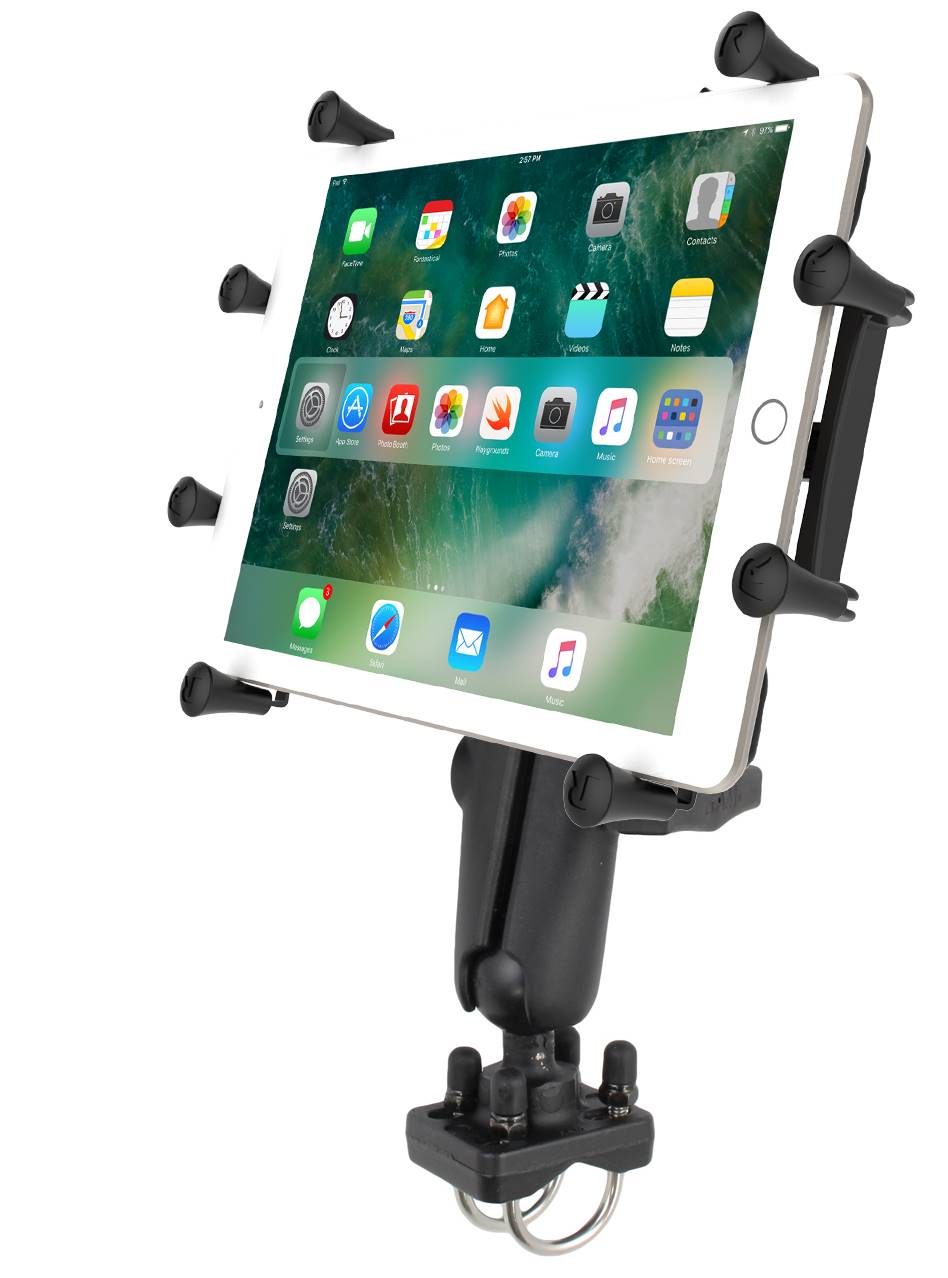

The RAM-HOL-UN9-235U consists of a double stainless steel u-bolt base, double socket arm, round base
adapter and universal X-Grip clamping cradle for 10" tablets. Included in this package is hardware
that will accommodate rails from 1" to 1.25" in diameter. The base includes black cover caps to be
placed over the exposed ends of the u-bolt. The mount is designed with a RAM 1.5" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. The X-Grip clamping cradle
consists of a composite spring loaded cradle, expandable grip arms and additional bottom support
keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick
release of your tablet. The X-Grip clamping cradle expands and contracts for perfect fit of most
10" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of
your tablet below for compatibility with the X-Grip.

HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

CLAMP RANGE
1" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
2.45 lbs.
