RAM-HOL-UN4U_RAM Finger-Grip Universal GPS and Radio Ho

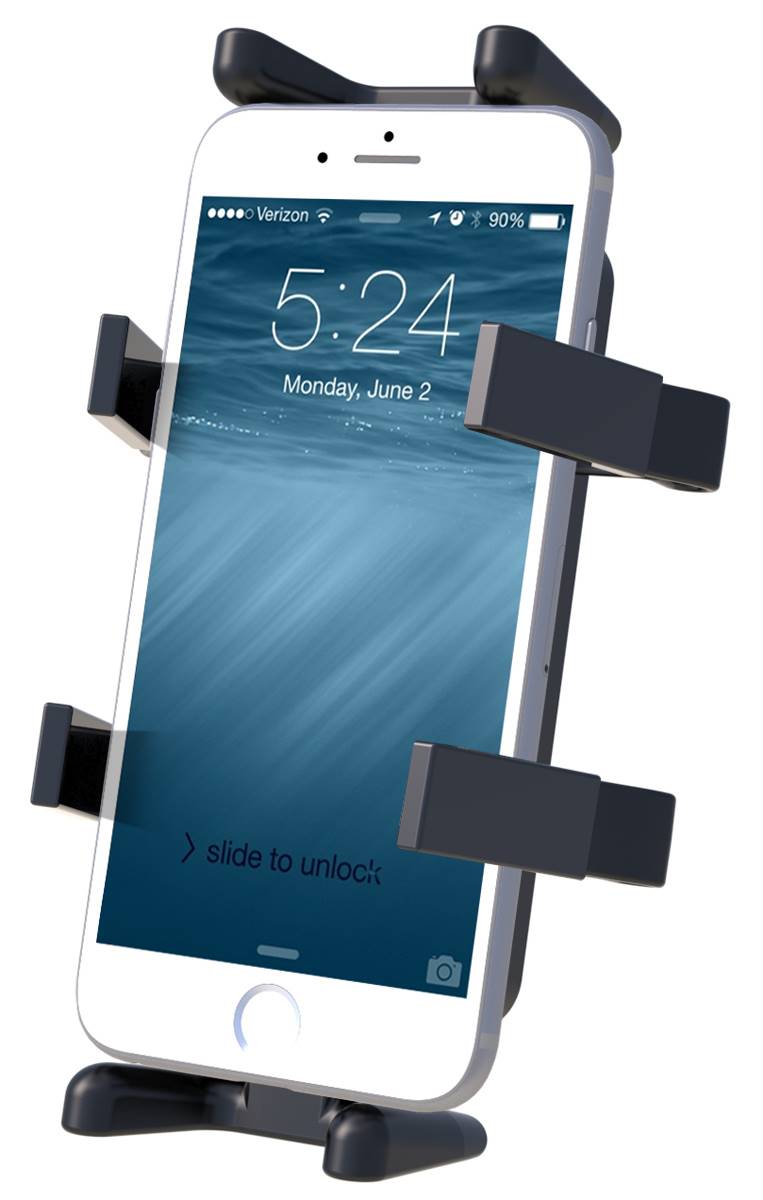

The RAM-HOL-UN4U is designed to hold a range of phones and electronics. The RAM Finger-Grip comes
with three sets of four flexible rubber-coated fingers to grip your device. To open the fingers,
simply squeeze the ends. The bottom of the holder includes a back plate that adds support to the
device being held. The spine plate contains the universal AMPS hole pattern for connection to
compatible RAM components using the included set of two nuts and bolts.

HARDWARE INCLUDED
Assembly Hardware
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"

HOLE PATTERN
(3) 4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Unviversal holder with flexible rubber-coated fingers to provide a secure grip of your device;
fingers open by squeezing the ends

Includes three sets of four rubber-coated fingers for different size devices as well as top and
bottom optional device supports

Compatible with RAM Mounts B and C size diamond ball bases for attaching to double socket arms and
mounting bases

Backed by a lifetime warranty


WEIGHT
0.45 lbs.
