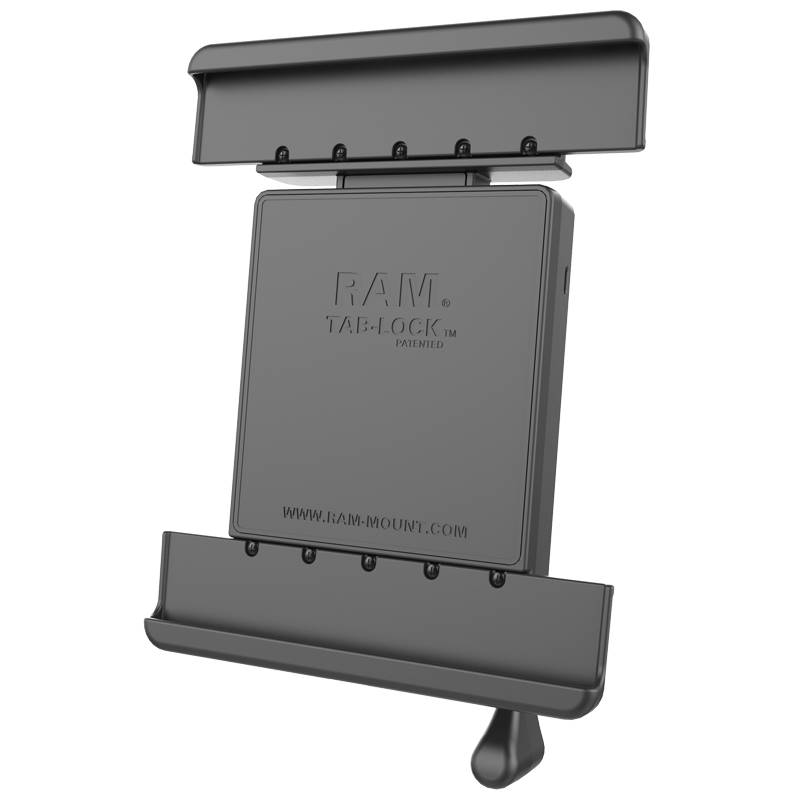

RAM-HOL-TABL26U_RAM Tab-Lock Tablet Holder for Samsung

The RAM Tab-Lock spring loaded, quick release cradle with a keyed lock offers a secure fit with
easy access to the mounted tablet. The keyed lock offers theft deterrence and unwanted tampering in
public settings. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab 4
10.1 and Tab S 10.5. The spring loaded design makes it easy to insert and remove your tablet, along
with keeping it secure in mobile applications. The custom end cups are designed to optimize the
functionality of your tablet, enabling access to all ports and tablet functions. The included back
plate is interchangeable with various size support cups, making it compatible with numerous tablet
models. New detachable support cups are the only components needed for purchase, attach to the back
plate for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle
to any RAM components or mounts that contain the universal AMPs hole pattern. The Tab-Lock cradle
is compatible with any tablet that will fit the dimensions listed below. It is important to verify
the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

HOLDER DIMENSIONS
Height Range: 9.38" - 12.11"
Width Range: 5.55" - 7"
Depth Range: .13" - .34"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Locking mechanism for theft deterrence

Support cups contain open slots to accomodate for tablets of various sizes

Back plate can support various size support cups

Spring loaded tension provides secure support and quick release for your tablet

Backed by a lifetime warranty


WEIGHT
1.2 lbs.
