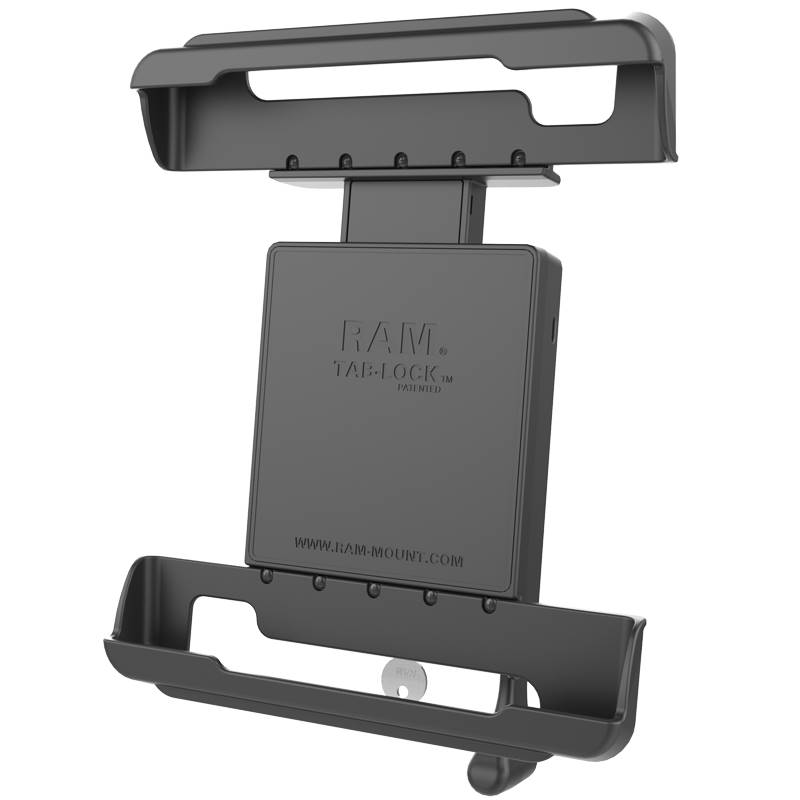

RAM-HOL-TABL10U_RAM Tab-Lock Tablet Holder for Panasoni

The spring loaded Tab-Lock cradle for the Panasonic Toughpad FZ-A1 is durable and provides loads
of security. Cup ends are designed to optimize the functionality of your tablet, allowing access to
audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. If
security is a priority, the RAM Tab-Lock is a rock solid cradle that is sure to make most would-be
thieves think twice about trying to steal your tablet. With a full complement of compatible mounts,
you are sure to find the perfect solution for all your mobile needs. Included is a set of four nuts
and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole
pattern. The included back plate is interchangeable with various size support cups, making it
compatible with numerous tablet models. New detachable support cups are the only components needed
for purchase, attach to the back plate for support of your new tablet. The Tab-Lock cradle is
compatible with any tablet that will fit the dimensions listed below. It is important to verify the
dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

HOLDER DIMENSIONS
Height Range: 9.75" - 12"
Width Range: 6.38" - 8.62"
Depth Range: .13" - 1"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Locking mechanism for theft deterrence

Support cups contain open slots to accomodate for tablets of various sizes

Back plate can support various size support cups

Spring loaded tension provides secure support and quick release for your tablet

Backed by a lifetime warranty


WEIGHT
1.3 lbs.
