RAM-HOL-GA71LU_RAM Form-Fit Locking Cradle for Garmin D

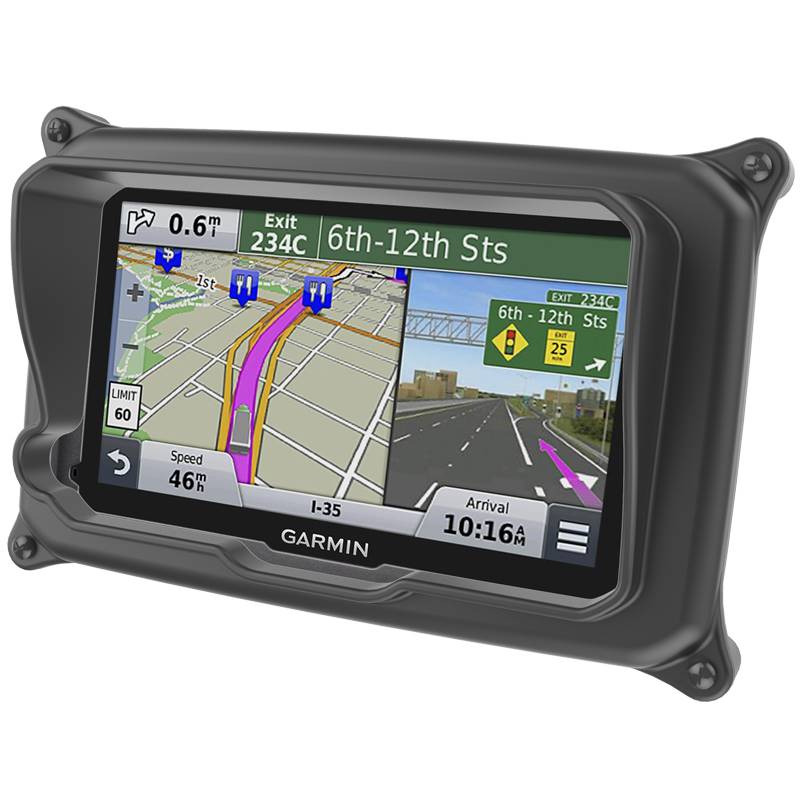

The RAM-HOL-GA71LU is a high-strength composite locking case for the Garmin dezl 570LMT. RAM has
designed a form-fit cradle that supports the device and protects it from vibration. We have also
molded in a sun visor to shield the screen. and hole pattern that will allow the attachment to all
RAM components or mounts that contain the universal AMPs hole pattern. Compatible and
interchangeable with a wide range of popular RAM mounting products, this locking case is ready to
compliment your GPS and become the most useful accessory in your vehicle. Included is a set of two
nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs
hole pattern.

HARDWARE INCLUDED
Assembly Hardware
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(1) 4" Cable Tie

HOLE PATTERN
2-Hole AMPS: 1.912"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Open access to all electronic ports including speaker and microphone

Form fitted cradle made of high strength materials ensures product longevity and protects device
without vibration

Built in visor prevents glare on screen

Integrates the factory Garmin magnetic dock for charging

Locks device in place so it cannot be removed without the use of tools


WEIGHT
0.35 lbs.
