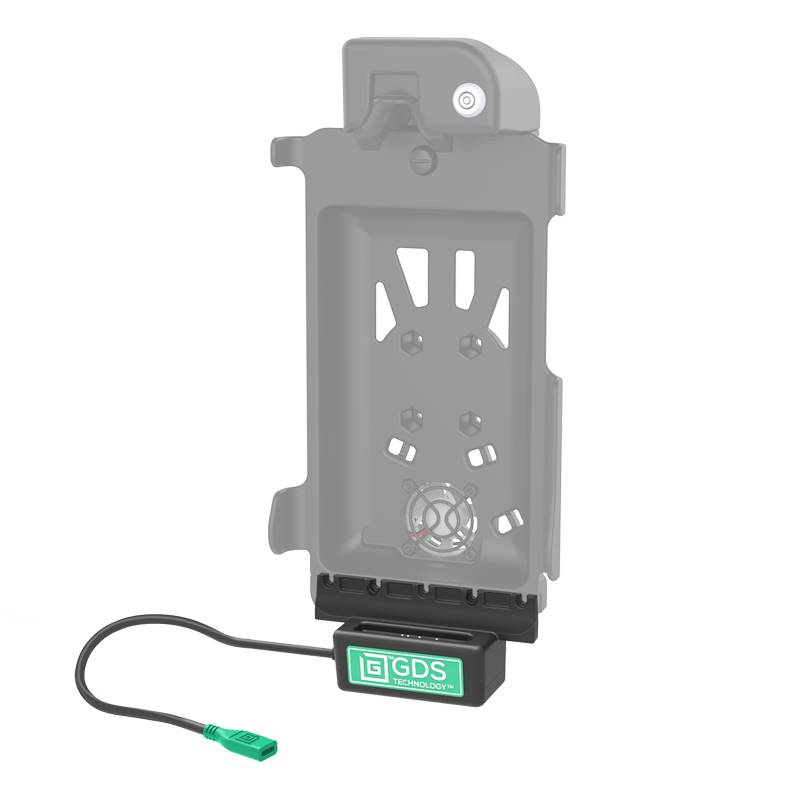

RAM-GDS-DOCK-V10PU_GDS Powered Dock Cup for IntelliSkin

This GDS Vehicle with USB Type-C for handheld PC IntelliSkin
is designed to fit all compatible handheld PC devices wrapped with IntelliSkin including the
Zebra EC50 and EC55 enterprise mobile computers. The dock's one-handed operation makes it easier than
ever to secure your IntelliSkin-wrapped device in a variety of environments and mounting
configurations. An integrated cutout on the top allows for the ability to scan without removing the
device from the dock. Featuring a .38M long USB Type-C cable, this dock supports USB 3.1 charging
specifications.

FEATURES

Spring-loaded powered dock featuring GDS Technology is designed to accommodate IntelliSkin-wrapped handheld PC devices including the Zebra EC50 & EC55

Compatible with RAM diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

Made of high-strength composites for durability and reliability in the most demanding environments

Backed by a 3-year warranty

Hardware Included
(2) #8-32 x 1/2 INCHES Machine Screws (2) #8-32 x 5/8 INCHES Machine Screws (2) #8-32 x
.75 INCHES Screws (2) #8-32 Nylock Nuts

Hole Pattern
2-Hole AMPS: 1.912 INCHES

Materials
High strength composite

Packaging Type
Poly Bag

Output Voltage
20VDC @ 3A

Input Connector
USB Type-C

Input Cable Length
.38 Meter

Weight
0.4 lbs.

Warranty Status
3 year warranty
