RAM-D-111U-E_RAM Large Marine Electronics Mount - D Siz
RAM-D-111U-E_RAM Large Marine Electronics Mount - D Siz
Regular price
$196.99 USD
Regular price
Sale price
$196.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
D size 2.25"
UPC:
793442939105
Mfg Part #:
RAM-D-111U-E
Availability:
In Stock
Part Number:
RAM-D-111U-E
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

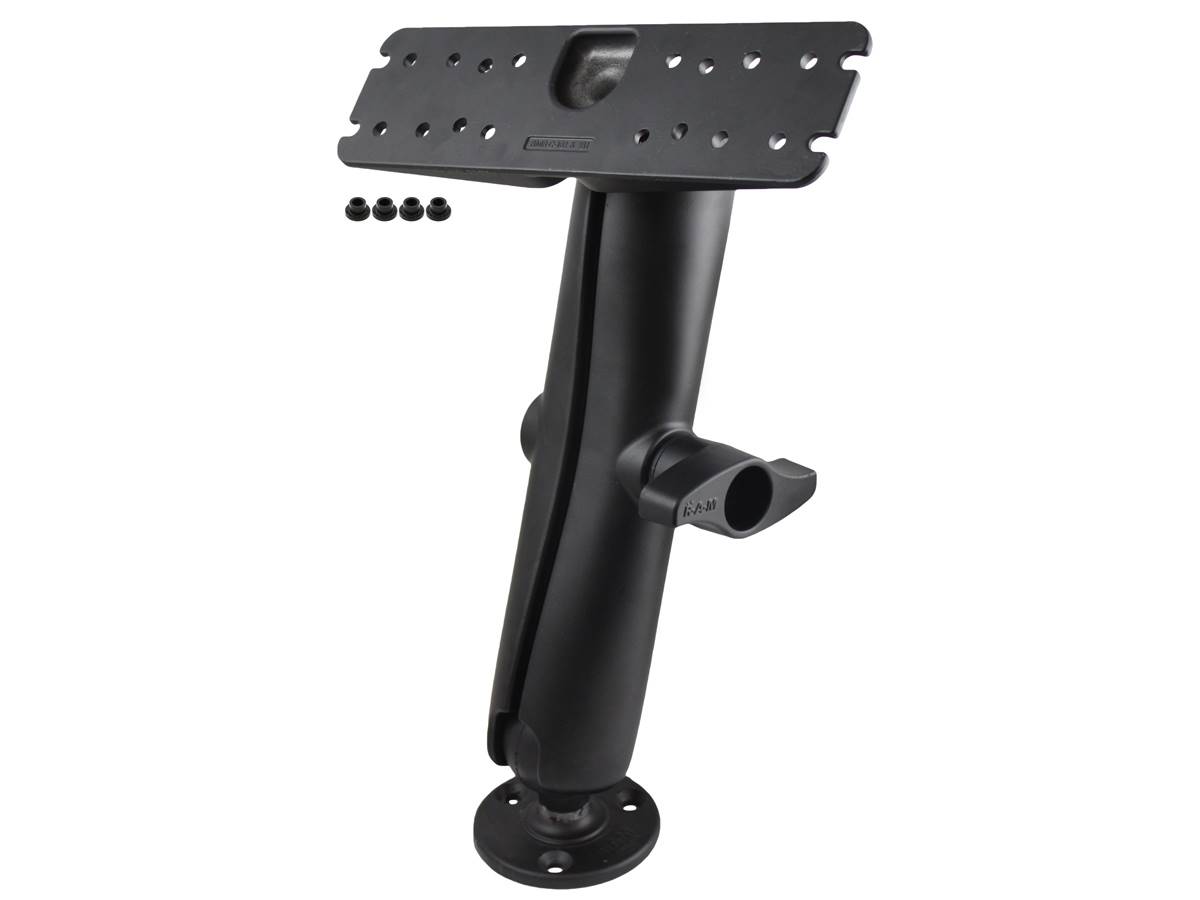

The RAM-D-111U-E consists of a 3.68" diameter round base, LONG length double socket arm and 11" x 3"
rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and
three holes at 120 degrees. The rectangle plate contains different combinations of pre-drilled holes
which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham
Radios, Gimbal Brackets and more.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS
Overall Height: 16.03"
SOCKET-TO-SOCKET LENGTH
11.41"
HOLE PATTERN
See Drawings
PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.
WEIGHT
5.5 lbs.
rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and
three holes at 120 degrees. The rectangle plate contains different combinations of pre-drilled holes
which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham
Radios, Gimbal Brackets and more.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS
Overall Height: 16.03"
SOCKET-TO-SOCKET LENGTH
11.41"
HOLE PATTERN
See Drawings
PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole
locations. In certain applications additional holes may need to be drilled for proper fit with your
electronic device.
WEIGHT
5.5 lbs.
Dimensions:
- Overall Length: 16.03"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:D Size 2.25" Rubber Ball
- Weight Capacity:Up to 6 pounds
- Note:The "U" in the part number reflects product packaged in poly bag. The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
- Weight:5.5 lbs.
