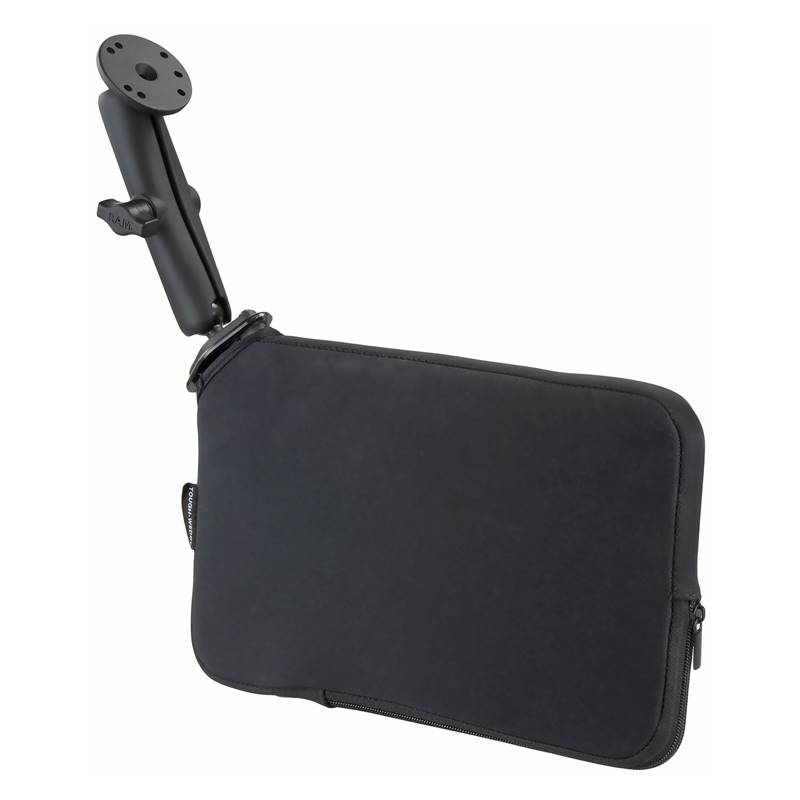

RAM-B-407-C-202U_RAM Tough-Wedge with Double Socket Arm

The RAM-B-407-C-202U consists of the Tough-Wedge 1" ball diamond base, long double socket arm and
round base. The Tough-Wedge is a seat wedge mount that fits in the gap between the vehicle seat and
center console; allowing easy access and operation of your mobile device. The Tough-Wedge can also
be used for back-seat applications, inserted into the pockets located on the back of the front
seats. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm. The long length double socket arm measures
6" and will connect to all RAM cradles/adapters with a 1" ball. The 2.5" round base contains the
universal AMPs hole pattern.

HARDWARE INCLUDED
Assembly Hardware

WEDGE DIMENSIONS
Length: 13.25"
Height: 8.25"
Thickness: 1"

SOCKET-TO-SOCKET LENGTH
5.31"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
2.02 lbs.
