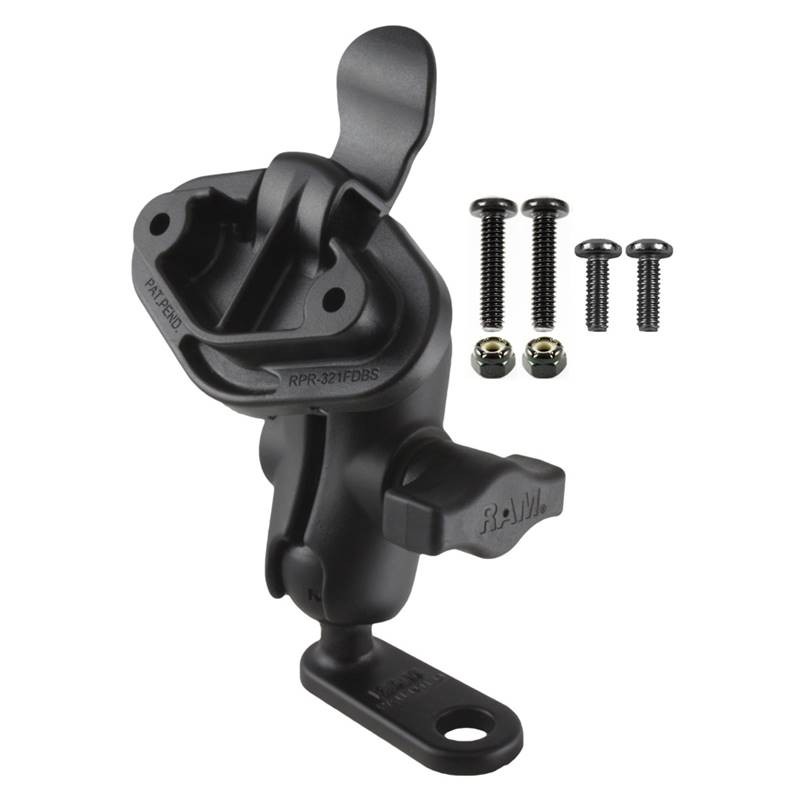

RAM-B-252-A-326U_RAM EZY-Mount Quick Release Adapter wi

The RAM-B-252-A-326U consists of a 2.25" x 0.875" base with 11mm hole, SHORT double socket arm and
EZY-Mount quick release adapter kit. The base is often used on motorcycles, attaching to the mirror
frame, the main brand of bike is BMW. This part fits well on many handlebar pinchbolts with a washer
(base is 5mm thick). The EZY-Mount adapter kit utilizes a quick release male to female union, these
mounts are absolutely perfect for those who want the most secure, yet rapid release and portable kit
possible. How does it work? Mate an EZY-Mount male or female component to any RAM cradle or device
with the standard AMPS hole pattern. Align the two parts and snap into place. To release, push back
the release tab and go. The mount is designed with a RAM 1" diameter patented rubber ball and socket
system that has adjustment points at both ends of the double socket arm; this allowing for almost
infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
Assembly Hardware

SOCKET-TO-SOCKET LENGTH
1.75"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.42 lbs.
