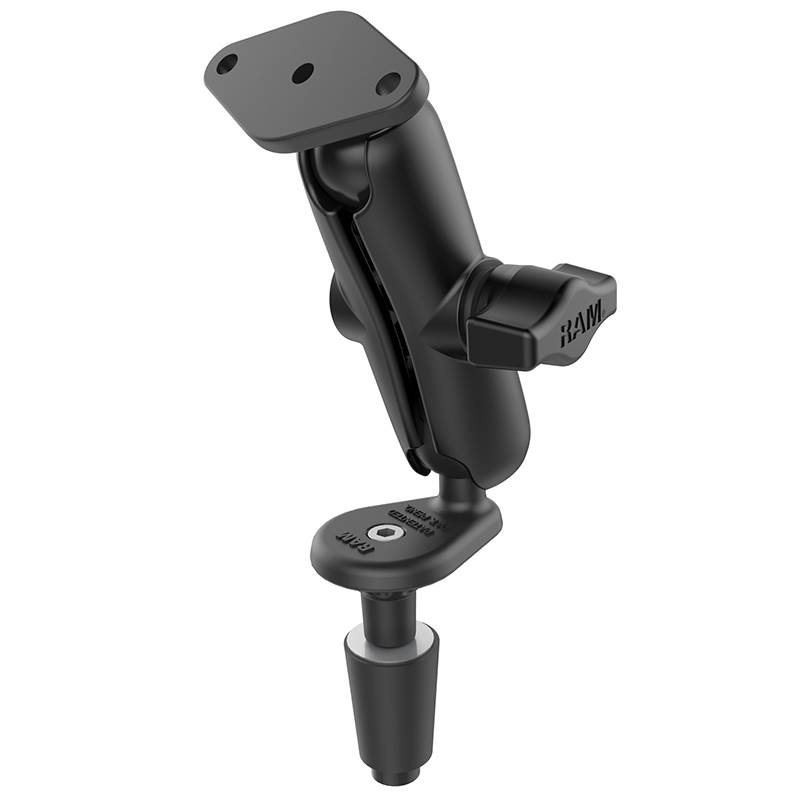

RAM-B-176U_RAM Motorcycle Fork Stem Double Ball Mount

The RAM-B-176U consists of a fork stem motorcycle base, double socket arm and diamond base adapter.
The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and
will connect to a large variety of RAM Mount and third party cradles. This part is designed to fit
into the cylindrical bore wall of fork stems and will work with stems that measure from 12 - 38mm
(.5” – 1.49”).

HARDWARE INCLUDED
(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.6 lbs.
