RAM-B-166-TO2U_RAM Twist-Lock Suction Cup Mount for Tom

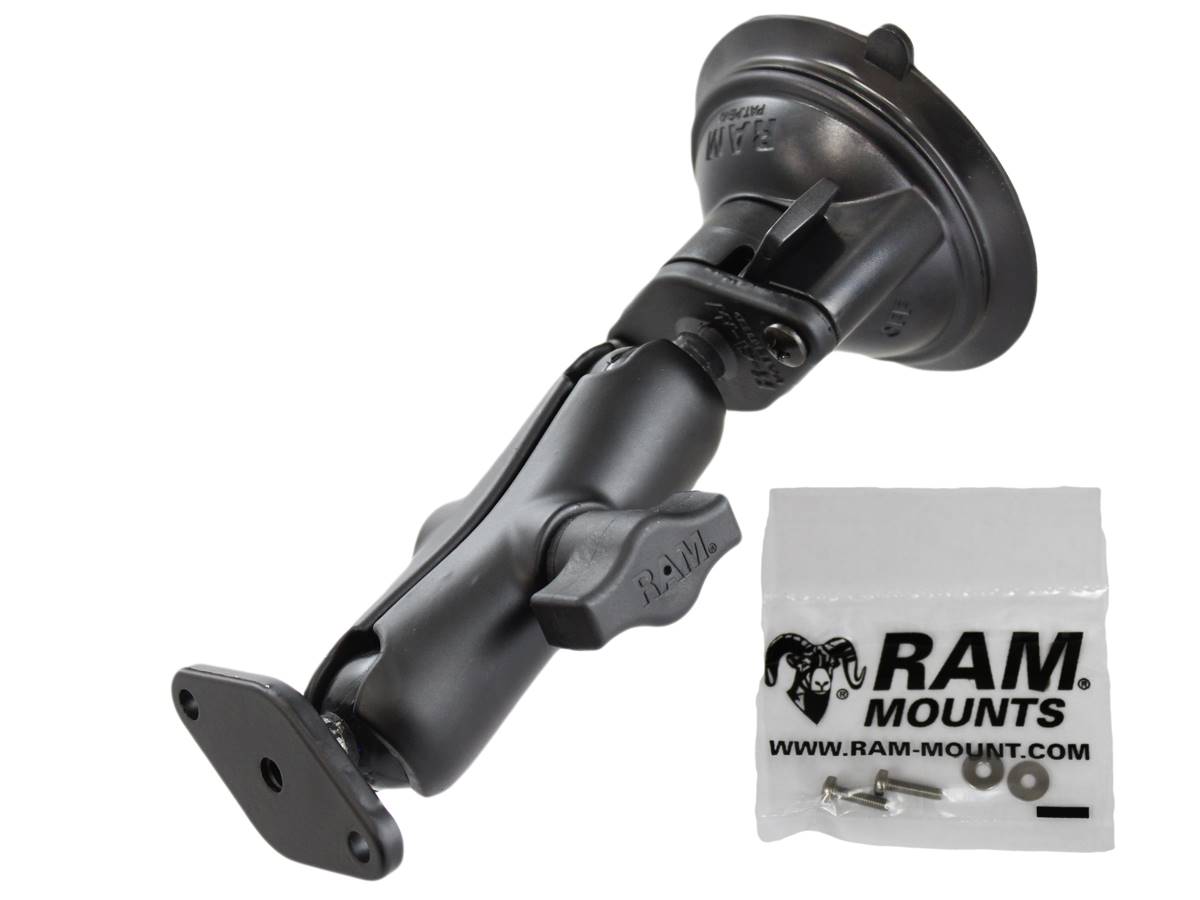

The RAM-B-166-TO2U, twist lock suction cup mount consists of a 3.3" suction cup locking base, socket
system and connection hardware for the TomTom Rider. The mount is designed with a RAM 1" diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket
arm; this allowing for almost infinite adjustment and perfect viewing angles. Simply attach the
suction cup base to the windshield of your vehicle for an easy and safe way to view your handheld
device in your vehicle. High quality materials ensure your electronic device is safe, secure, and
within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life
of your mobile device. The base included connects to the back of the factory cradle that is included
with the purchase of the TomTom Rider. The screws that are included with the RAM-B-166-TO2U match up
with the threads on the back of the RIDER cradle.

HARDWARE INCLUDED
Assembly Hardware
(2) M3 x 12mm Machine Screws
(2) M3 Stainless Steel Washers

SUCTION SIZE
3.3" Diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.61 lbs.
