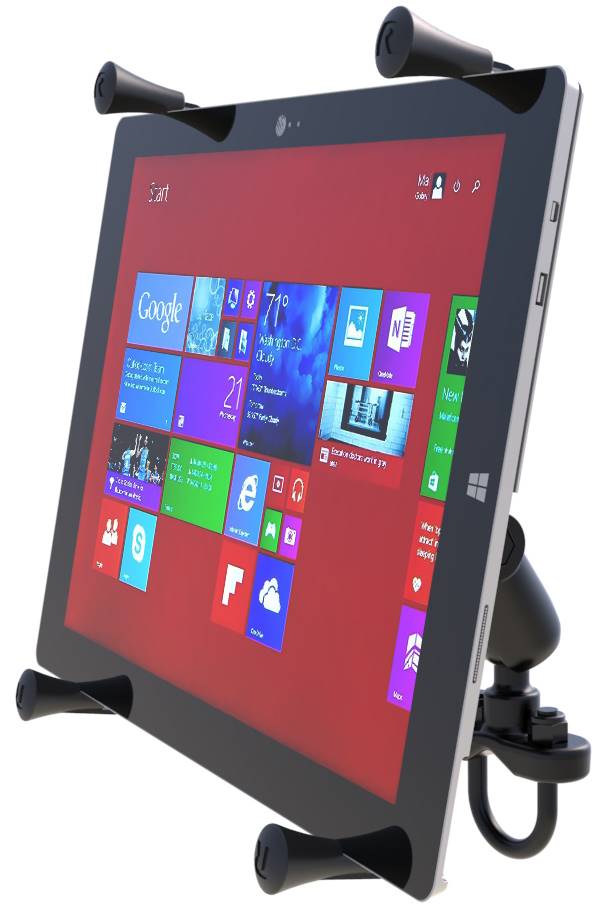

RAM-B-149Z-UN11U_RAM X-Grip Large Tablet Mount with Han

The RAM-B-149Z-UN11U consists of a zinc coated u-bolt base, double socket arm, round base adapter
and universal X-Grip clamping cradle for 12" tablets. Included in this package is hardware that
will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be
placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail
to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and
socket system that has adjustment points at both ends of the double socket arm; this allowing for
almost infinite adjustment and perfect viewing angles. The X-Grip clamping cradle consists of a
composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included
are extra easy access grip knobs, located on the back of the cradle for quick release of your
tablet. The X-Grip clamping cradle expands and contracts for perfect fit of most 12" tablets with
or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below
for compatibility with the X-Grip.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
This holder is compatible with the iPad Pro 12.9 without case only.

WEIGHT
1.79 lbs.
