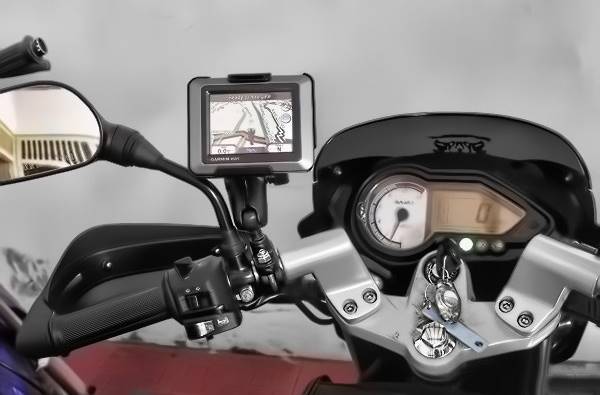

RAM-B-149Z-GA32U_RAM Handlebar Mount for Garmin nuvi 22

The RAM-B-149Z-GA32U consists of a zinc coated u-bolt base, double socket arm and high strength
composite cradle for the Garmin nuvi. Included in this package is hardware that will accommodate
rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the
exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum
width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system
that has adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.68 lbs.
