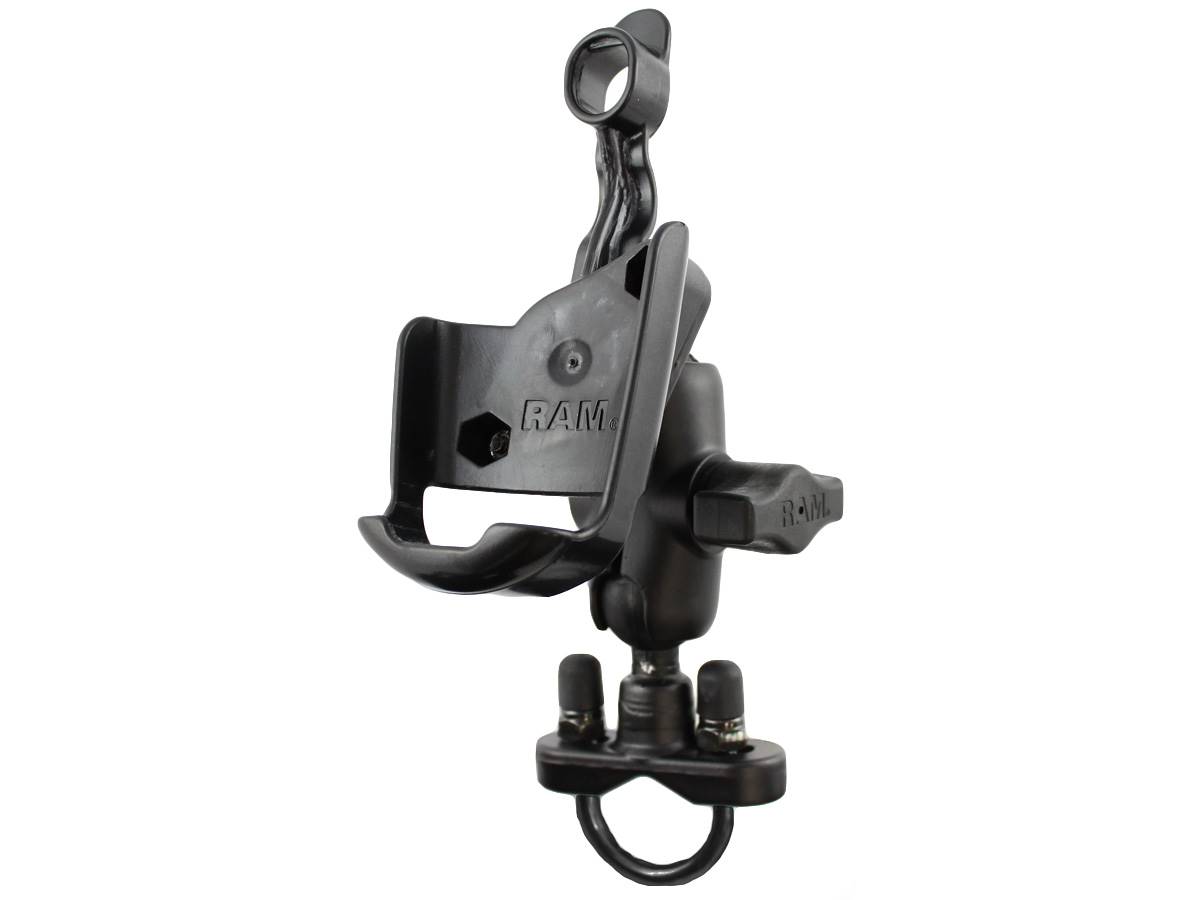

RAM-B-149Z-A-GA12_RAM Handlebar U-Bolt Ball Mount for G

The u-bolt base makes attaching to handlebars, tubing, or railing a breeze. Simple to install and
easy to use, the possibilities become endless. Rubber ball and socket technology allows for almost
infinite adjustment and perfect viewing angles. High quality materials insure your Garmin GPSMAP is
safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping
to extend the life of your mobile device. Cutting edge products like the Garmin GPSMAP deserve a
cutting edge mount and RAM delivers. Included in this package is hardware for tubing that is 0.75"
to 1.25" in diameter.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
1.75"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Retail Bag

ADDITIONAL INFORMATION
This mount requires the standard belt clip button which is included with the purchase of the GPS
unit from Garmin.

WEIGHT
0.64 lbs.
