RAM-B-149Z-300-1U_RAM Power Plate III Radar Detector Mo

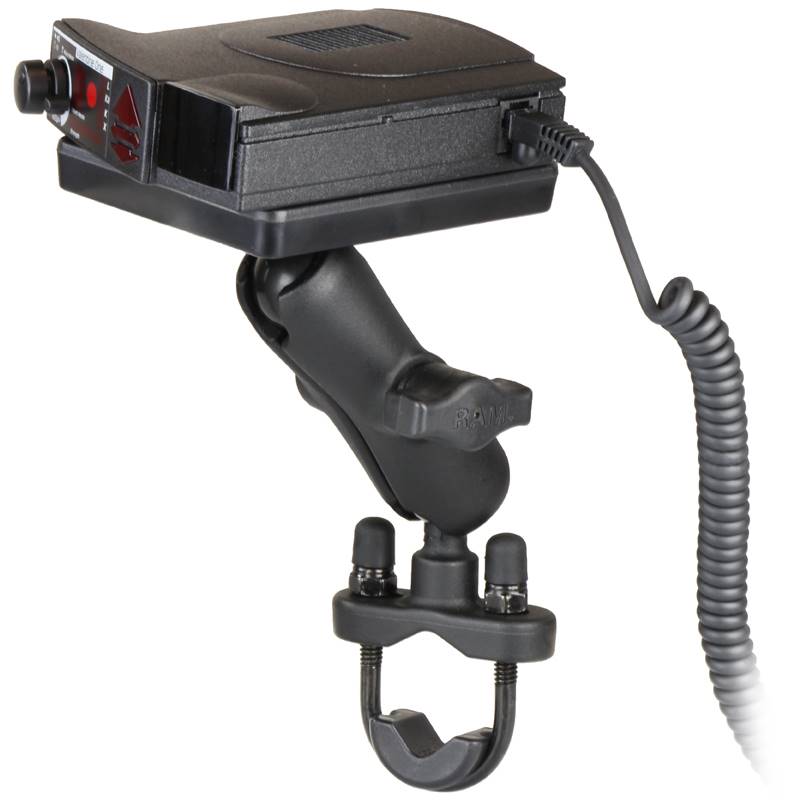

The RAM Magnetic Power Plate III U-Bolt Handlebar Mount is designed to hold radar detectors
securely while on the road. The magnetic plate includes two powerful rare earth magnets, composite
cradle and one adhesive steel plate. To mount your device to the magnet, simply adhere the steel
plate to the back of you device and lock up against the holder. This holder includes a quick-release
function, where the device conventiely can be removed by twisting out of the holder in one easy
motion. The Handlebar U-Bolt Mount is made up of three components total: A U-bolt ball base that can
accomodate any handlebar from .5" to 1.25" diameter, a double socket arm, and a round ball plate
that connects to the bottom of the RAM Power Plate III. The double ball and socket design provides
infinite adjustability, so you can articulate your radar detector to the perfect viewing and
operating angle. The rubber ball components provide shock and vibration damping, making this mount
suitable for any rugged environment.

HARDWARE INCLUDED
Assembly Hardware
(1) 50mm x 38mm Steel Adhesive Plate
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag
