RAM-B-132R-2U_RAM Level Cup 16oz Drink Holder with ATV/

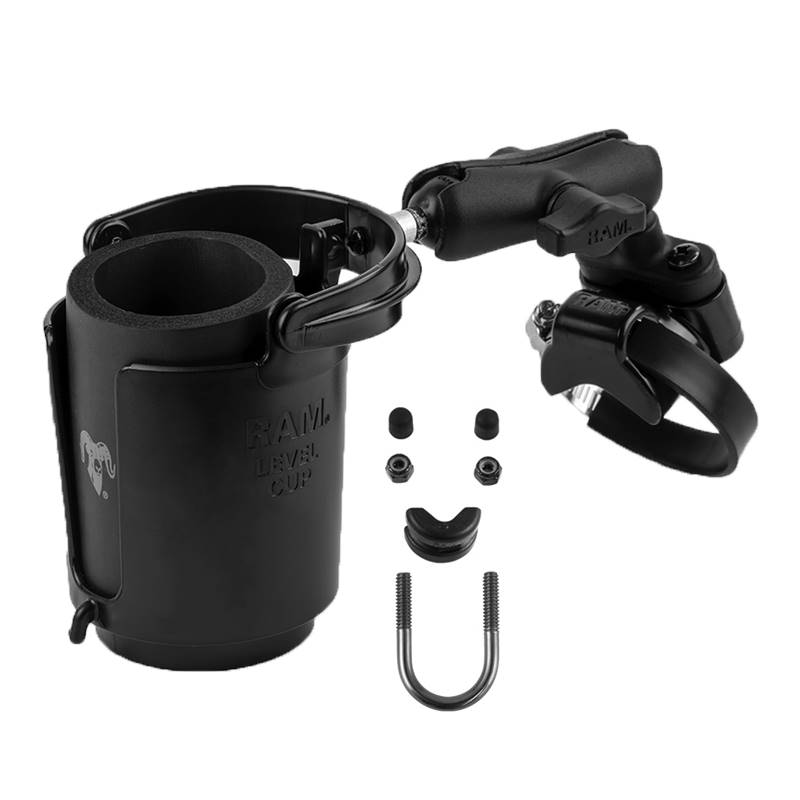

The RAM-B-132R-2U consists of a steel strap base, zinc coated u-bolt base, double socket arm, 1"
diameter ball and a RAM Level Cup Self-Leveling Drink Holder with RAM can insulator. Designed for a
clean installation, the RAM strap base will accommodate roll bars from 1.57" to 3.14" in diameter,
letting you keep your favorite beverage within reach. Safely concealing the strap clamp in a compact
housing, you won’t have to worry about exposed sharp edges or unwanted loosening. The stainless
steel u-bolt base Accommodates rails from 0.5" to 1" in diameter and includes black cover caps to be
placed over the exposed ends of the u-bolt. The RAM B size 1" diameter patented rubber ball and
socket system has adjustment points at both ends of the double socket arm. Wth a twist of the arm
knob, you can move the Self Leveling Cup Holder mount to your optimum position. Take a corner as
hard as you like, this holder is ready to ride. The integrated eyelet and hook provide an optional
tethering function, securing any small or open container in any harsh environment. Compatible with
any cups, cans, bottles or mugs ranging from 2.5” to 3.5” diameter.

HARDWARE INCLUDED
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

DRINK SIZE
12-16 oz

CLAMP RANGE
U-Bolt: .5" - 1" diameter
Strap Clamp: 1.57" - 3.15" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.87 lbs.
