RAM-B-121-AP20U_RAM EZ-Roll'r Cradle with Yoke Clamp Mo

This ideal airplane yoke mount includes a spring-loaded holder that
secures most 8 INCHES tablets with a case, and consists of a yoke clamp base, B size medium length double
socket arm and round 2.5 INCHES base that contains the universal AMPs hole pattern to attach the holder. The
yoke clamp base will fit rails in diameter from 0.625 INCHES to a maximum of 1.25 INCHES. The 1 INCHES rubber ball is at a
right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The

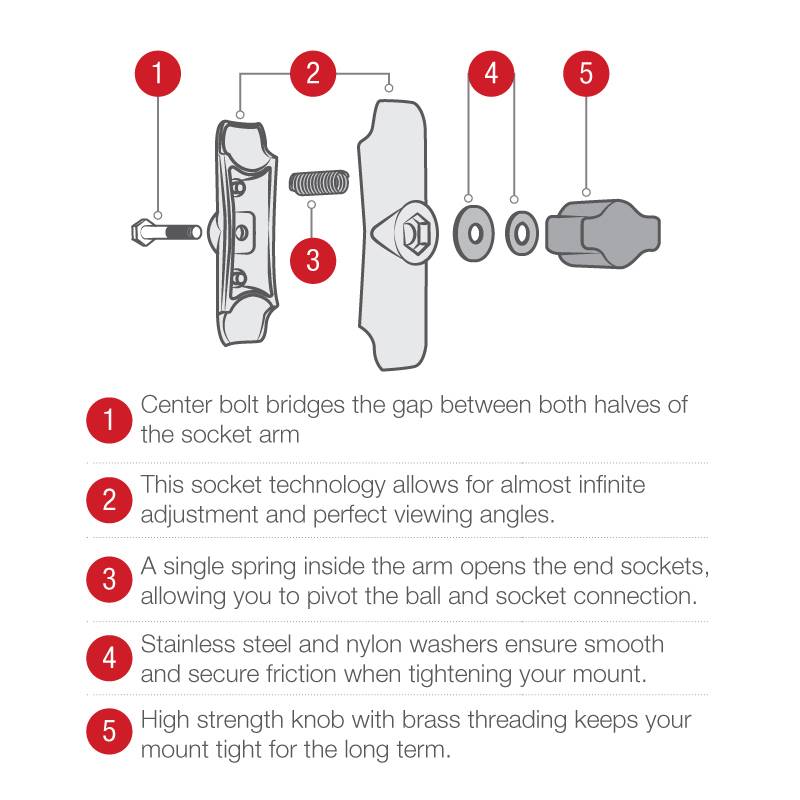

mount is designed with a RAM 1 INCHES diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and
perfect viewing angles.

FEATURES

Spring-loaded holder secures most 8 INCHES tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices

Yoke clamp base fits rails from .625 INCHES to 1.25 INCHES in diameter for the ideal airplane mount

Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Hardware Included
Assembly Hardware

Holder Dimensions
Height Range: 8.25 INCHES - 11 INCHES Width Range: 5 INCHES - 5.88 INCHES Depth Range: .3 INCHES - .67 INCHES

Clamp Range
.625 INCHES - 1.25 INCHES

Socket-to-Socket Length
3 INCHES

Ball/Socket Size
B Size (1 INCHES)

Weight Capacity
Standard Use: 2 lbs Heavy-Duty Use: 1 lb

Materials
Marine-grade aluminum High strength composite

Packaging Type
Poly Bag

Weight
2.78 lbs.
