RAM-B-101-G4_RAM Double Ball Mount with Hardware for Ga

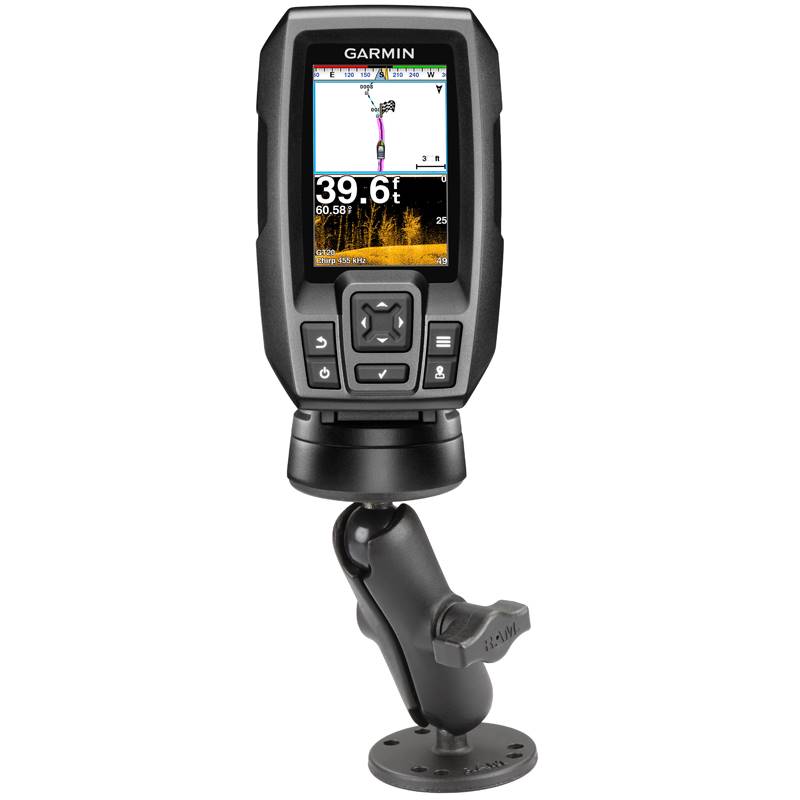

The RAM-B-101-G4 consists of a double socket arm, 2.5" diameter round base with the universal AMPS
hole pattern and round adapter base that attaches directly to the bottom of the Garmin echo and
Striker 4 Series. Designed into the mount is a 1" diameter patented rubber ball and socket system
with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles. Included is hardware
that is used to attach the Garmin echo to the RAM Mount.

HARDWARE INCLUDED
(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts

PRODUCT DIMENSIONS
Overall Height: 5"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Retail Bag

WEIGHT
0.75 lbs.
