RAM-2461-247U-2_RAM 2" Square Post Clamp Mount with 75x
RAM-2461-247U-2_RAM 2" Square Post Clamp Mount with 75x
Regular price
$77.99 USD
Regular price
Sale price
$77.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442906022
Mfg Part #:
RAM-2461-247U-2
Availability:
In Stock
Part Number:
RAM-2461-247U-2
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

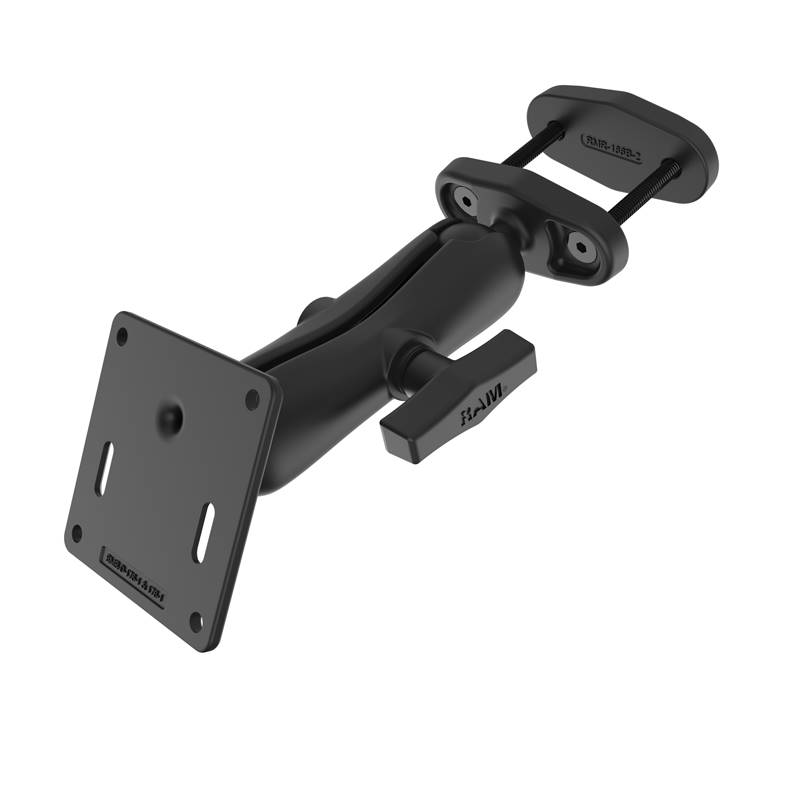

The RAM-2461-247U-2 consists of a 2" clamp base, double socket arm and 3.625" square base that
contains a 75mm X 75mm VESA hole pattern. Designed into the mount is a 1.5" diameter patented rubber
ball and socket system with adjustment points at both socket ends of the arm.
HARDWARE INCLUDED
(2) 5/16"-18 x 3" Macine Screws
(2) 5/16"-18 Nylock Nuts
CLAMP RANGE
2" max width
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.8 lbs.
contains a 75mm X 75mm VESA hole pattern. Designed into the mount is a 1.5" diameter patented rubber
ball and socket system with adjustment points at both socket ends of the arm.
HARDWARE INCLUDED
(2) 5/16"-18 x 3" Macine Screws
(2) 5/16"-18 Nylock Nuts
CLAMP RANGE
2" max width
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.8 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:1.8 lbs.
