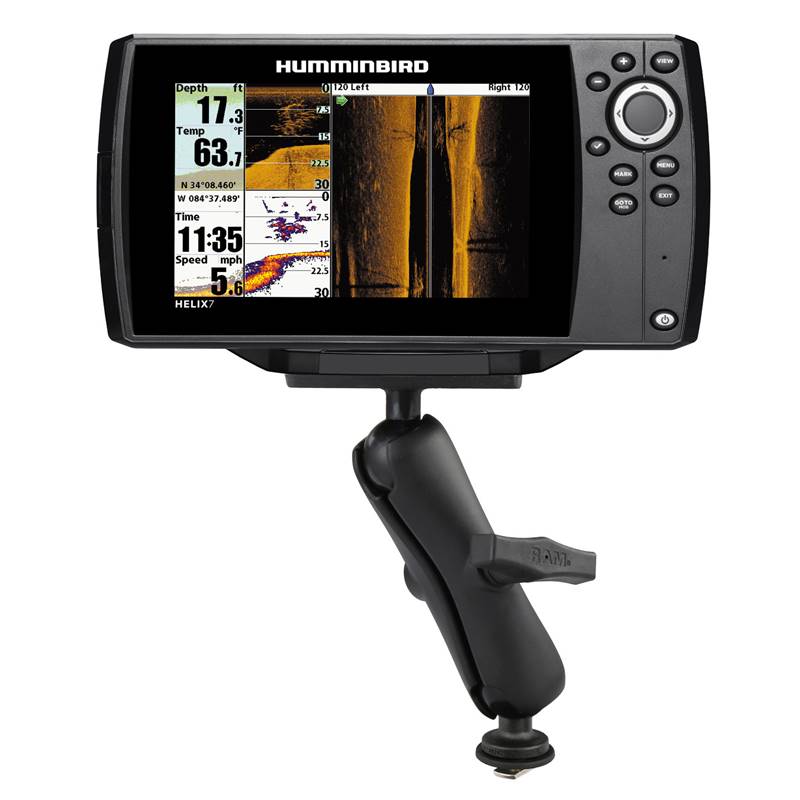

The RAM-202-24-354-TRA1U consists of a double socket arm mount, Track Ball base and 2" x 4"
rectangular plate. The unique rubber ball and socket technology dampens shock and vibration while
offering high adjustibility to achieve the perfect viewing angle. Compatible with any RAM Tough-
Track system.
HARDWARE INCLUDED
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
PRODUCT DIMENSIONS
Overall Height: 7.5"
T-BOLT DIMENSIONS
.48" x .95"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
1.5" x 3.5"
PLATE SIZE
2" x 4"
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
rectangular plate. The unique rubber ball and socket technology dampens shock and vibration while
offering high adjustibility to achieve the perfect viewing angle. Compatible with any RAM Tough-
Track system.
HARDWARE INCLUDED
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
PRODUCT DIMENSIONS
Overall Height: 7.5"
T-BOLT DIMENSIONS
.48" x .95"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
1.5" x 3.5"
PLATE SIZE
2" x 4"
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
Dimensions:
- Overall Length: 7.5"
- T-Bolt Dimensions: .48" x .95"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:Part number reflects product packaged in polybag.
- Weight Capacity:Up to 4 lbs
- Compatible Devices:Humminbird Helix 7
RAM-202U-24
RAM-201U
