RAM-202-24-202U_RAM Drill-Down Double Ball Mount for Hu

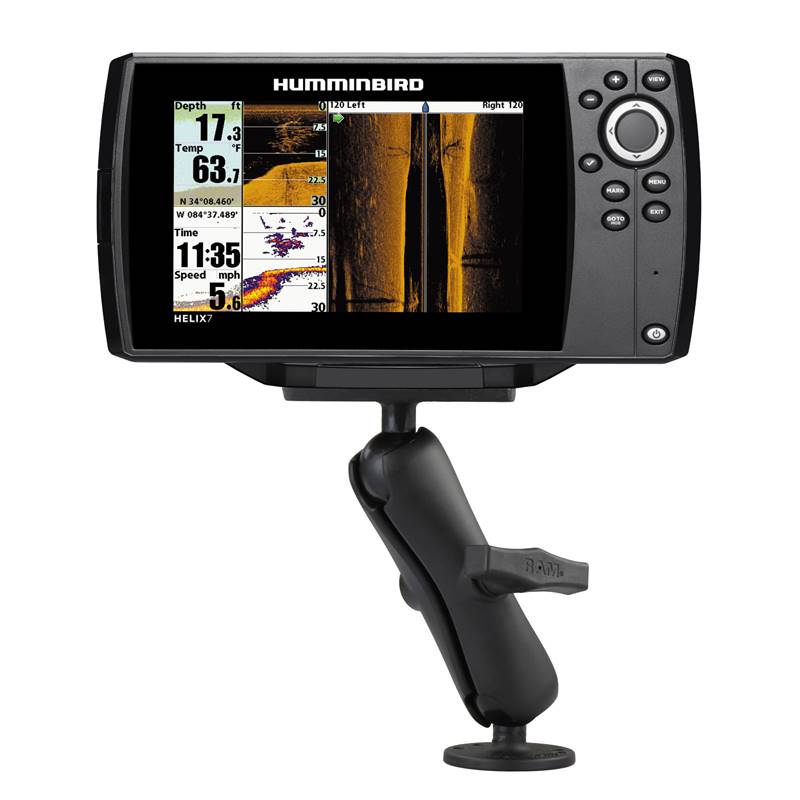

The RAM-202-24-202U powder-coated, marine-grade aluminum Humminbird Helix 7 mount consists of a
medium length double socket arm, a 2.5" diameter round base with a 1.5" C size ball, and one 1.5" x
3.5" rectangular plate with a 1.5" C size ball. The 1.5" x 3.5" rectangular plate contains a 4-hole
pattern. Rubber ball and socket technology provides shock and vibration damping, and allows for
near-infinite adjustability so you can position your device at the perfect viewing angle. Compatible
with the Humminbird Helix 7.

PRODUCT DIMENSIONS
Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter
Rectangular Plate: 1.5" x 3.5"

PLATE SIZE
Top Plate: 2" x 4"
Bottom Plate: 2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Complete flat surface, drill-down mounting solution for the Humminbird Helix 7; RAM Mounts ball and
socket technology allows for near-infinite adjustability

Includes 2.5" round base with C size 1.5" rubber ball, medium length C size double socket arm, and a
1.5" x 3.5" rectangle base with C size 1.5" rubber ball that connects to your Humminbird Helix 7

Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding
marine environments

Backed by a lifetime warranty


WEIGHT
1.26 lbs.
