RAM-111U-DL_RAM Universal Marine Electronic Mount with
RAM-111U-DL_RAM Universal Marine Electronic Mount with
Regular price
$111.99 USD
Regular price
Sale price
$111.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442910043
Mfg Part #:
RAM-111U-DL
Availability:
In Stock
Part Number:
RAM-111U-DL
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

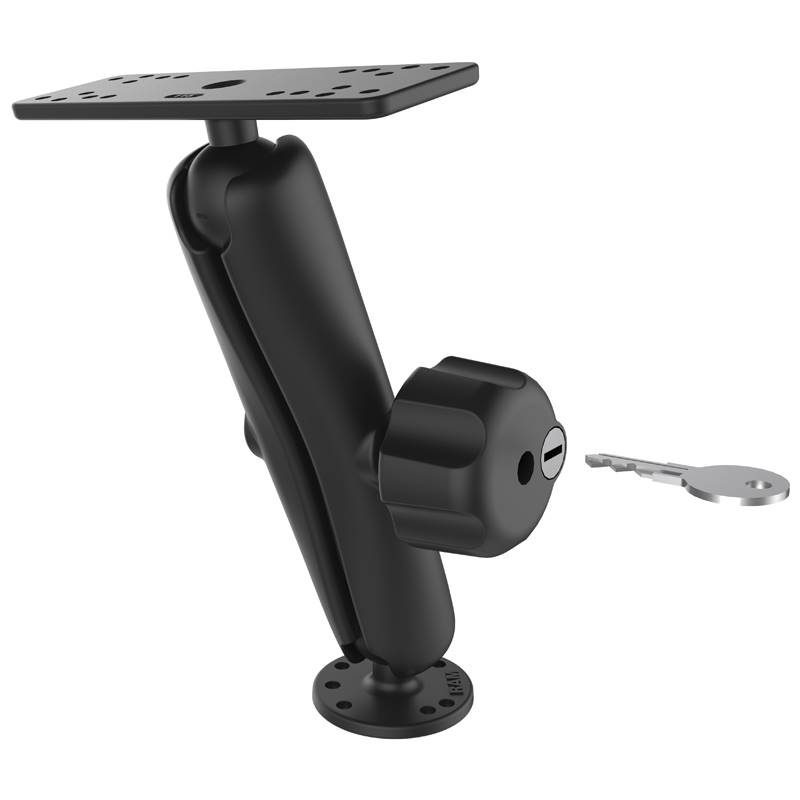

The RAM-111U-DL consists of a 2.5" diameter round base that contains the universal AMPs hole
pattern, LONG LENGTH double socket arm, locking knob and 6.25" x 2" rectangle base. The rectangle
base contains different combinations of pre-drilled holes which will match up to many electronic
devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
HARDWARE INCLUDED
(2) Keys
PRODUCT DIMENSIONS
Overall Height: 10.85"
SOCKET-TO-SOCKET LENGTH
8"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
PLATE SIZE
Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.
WEIGHT
2.25 lbs.
pattern, LONG LENGTH double socket arm, locking knob and 6.25" x 2" rectangle base. The rectangle
base contains different combinations of pre-drilled holes which will match up to many electronic
devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
HARDWARE INCLUDED
(2) Keys
PRODUCT DIMENSIONS
Overall Height: 10.85"
SOCKET-TO-SOCKET LENGTH
8"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
PLATE SIZE
Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.
WEIGHT
2.25 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
- Weight Capacity:Up to 4 lbs
- Weight:2.25 lbs.
