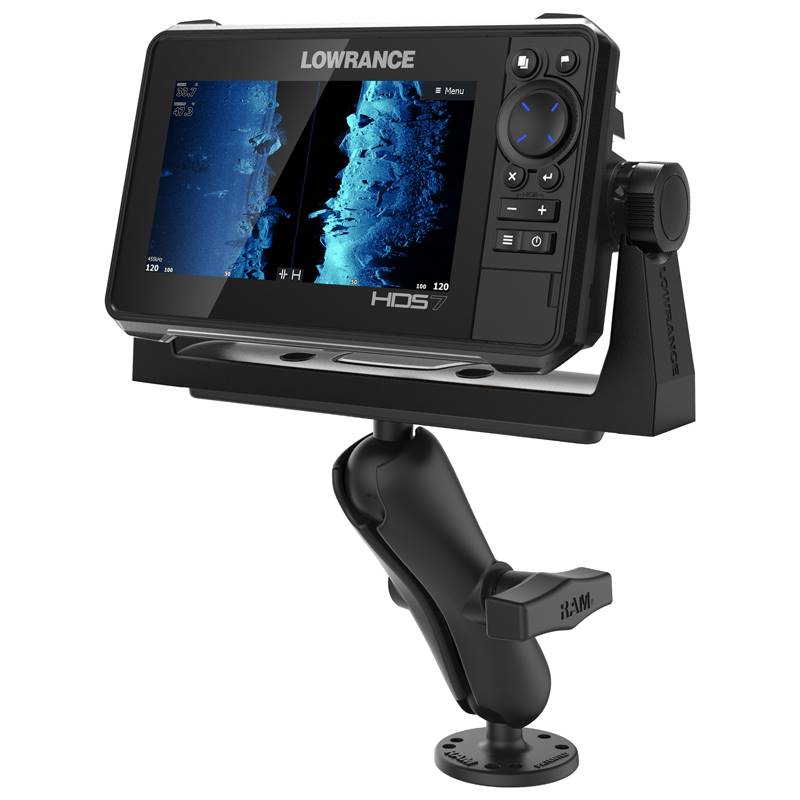

RAM-111U_RAM Drill-Down Marine Electronic Mount

The RAM-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2"
rectangle base. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes,
including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber
ball and contains a variety of pre-drilled holes that are compatible with several marine electronic
devices, including fishfinders and chartplotters.

PRODUCT DIMENSIONS
Overall Height: 7.35"

SOCKET-TO-SOCKET LENGTH
4.66"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

PLATE SIZE
Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter

BALL/SOCKET SIZE
C Size (1.5")

WEIGHT CAPACITY
4 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.

FEATURES:
Complete flat surface, drill-down mounting solution with an overall height of 7.35"

RAM Mounts ball and socket technology allows for near-infinite adjustability

Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding
marine environments

Backed by a lifetime warranty


WEIGHT
1.26 lbs.
