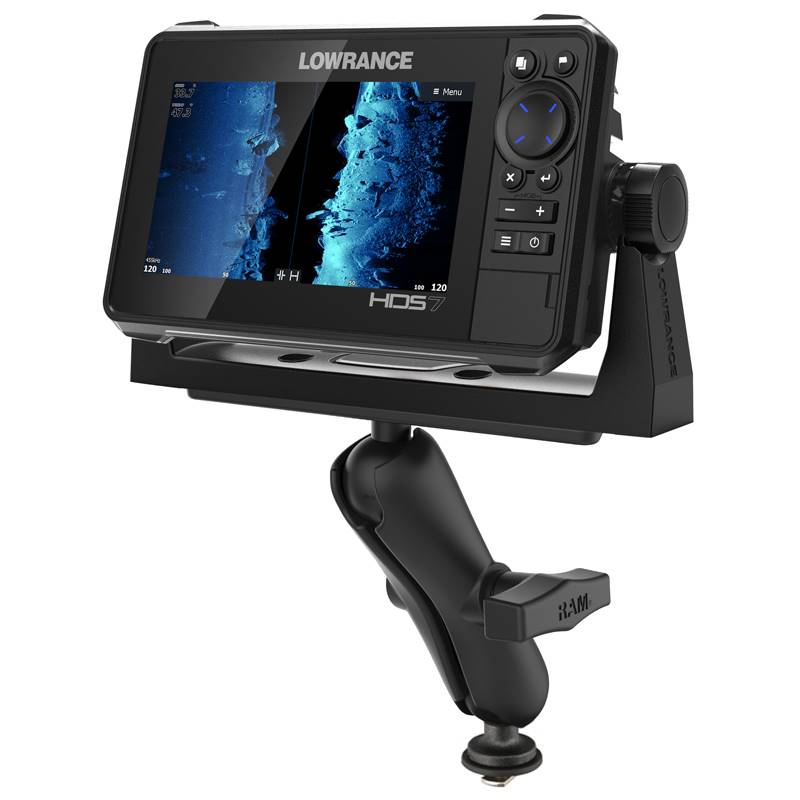

The RAM-111B-354-TRA1U consists of a Track Ball base that can attach to any track system including
the RAM Tough-Track. Connected to the base is a standard length double socket arm and 6.25" x 2"
rectangle plate for supporting a wide range of fishfinders and chartplotters. The rectangular plate
contains different combinations of pre-drilled holes which will match up to many electronic devices
and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
HARDWARE INCLUDED
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
PRODUCT DIMENSIONS
Overall Height: 7.5"
T-BOLT DIMENSIONS
.48" x .95"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
PLATE SIZE
6.25" x 2"
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.
WEIGHT
1.2 lbs.
the RAM Tough-Track. Connected to the base is a standard length double socket arm and 6.25" x 2"
rectangle plate for supporting a wide range of fishfinders and chartplotters. The rectangular plate
contains different combinations of pre-drilled holes which will match up to many electronic devices
and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
HARDWARE INCLUDED
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
PRODUCT DIMENSIONS
Overall Height: 7.5"
T-BOLT DIMENSIONS
.48" x .95"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
See Drawing
PLATE SIZE
6.25" x 2"
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.
WEIGHT
1.2 lbs.
Dimensions:
- Overall Length: 7.5"
- T-Bolt Dimensions: .48" x .95"
- Material:Powder Coated Marine Grade Aluminum and High Strength Composite
- Ball Size:C Size 1.5" Rubber Ball
- Note:Part number reflects product packaged in clear retail bag for store shelf display. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
- Weight Capacity:Up to 4 lbs
- Weight:1.2 lbs.
