RAM-109VU_RAM Vertical 6" Swing Arm Mount for Fishfinde

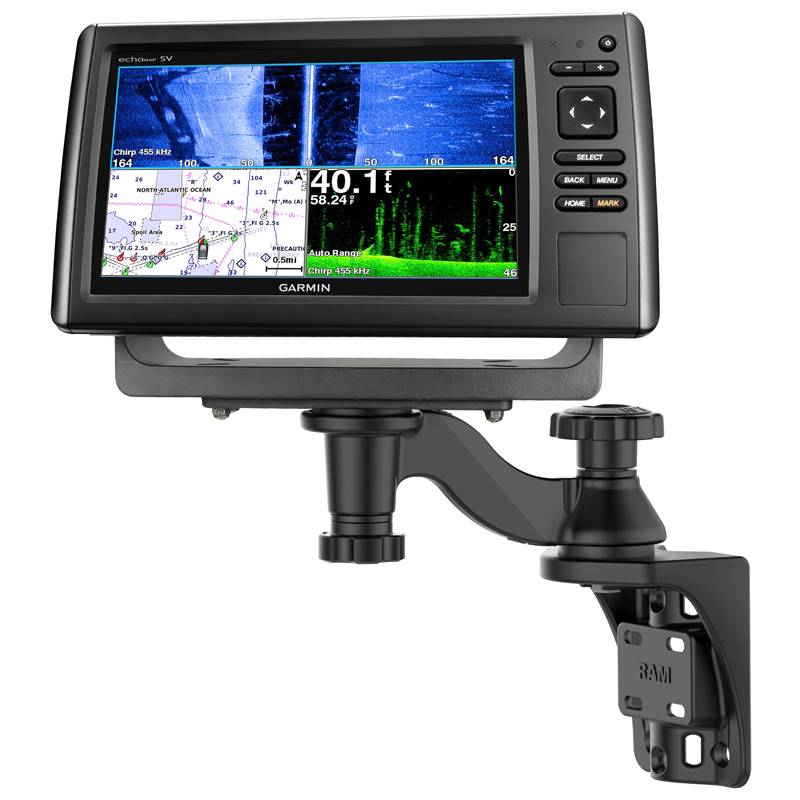

The RAM single swing arm mount consists of a 6" long swing arm mounted on a vertical surface
mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are
two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the
rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree
rotation.

PRODUCT DIMENSIONS
Overall Height: 8.45"
Total Swing Arm Length: 6"

HOLE PATTERN
See Drawing

PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 3.97" x 4.85"

WEIGHT CAPACITY
8 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.

FEATURES:
Universal drill-down fishfinder mounting solution features 6" swing arm for ideal device placement
on a vertical surface

Two pivot points allow for complete 360-degree rotation

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
2.6 lbs.
